Helical Drive Gear w/ Key, Nygren Dahly
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge
Nygren Dahly

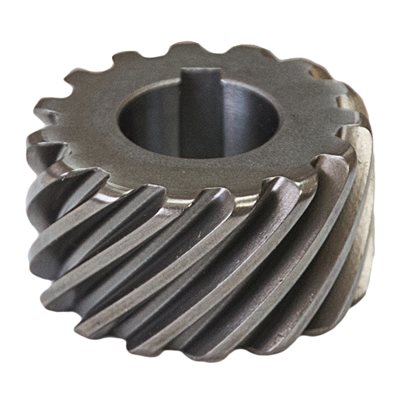

Helical Drive Gear w/ Key, Nygren Dahly

Part Number: DH-119

Helical Drive Gear for Baum/Nygren Dahly paper drill heads

• Equivalent to #'s DH-119, N-20B

$106.40 /EACH
List price: $106.40 /EACH
    • EACH
  • Availability: In stock

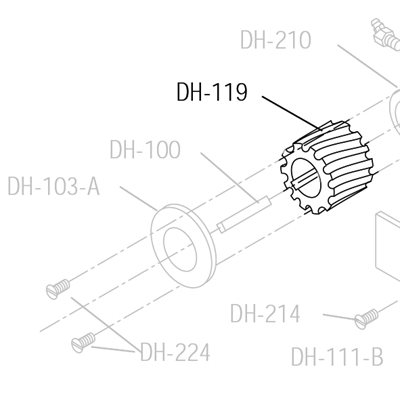

Nygren Dahly Drill Head Breakdown

Click parts in the diagram for product pages

Hex NutWasherSpindle Thrust WasherDrill Spindle SleeveSpindle Thrust BearingSpacer CollarHelical Spindle GearDrill SpindleUpper BushingClamp Screw Lever AssyDrill Spindle Sleeve CapDrill Frame Clamp screwDrill Frame CapDrill Spindle Clamp ThreadedSet Screw Set, Long & ShortFlat Head ScrewDrill Gear CapGear KeyHelical Drive GearDrive Gear WasherGrease FittingSide Plate ScrewsSide PlateLower BushingDrill HousingStripper FootCap ScrewSide PlateSide Plate ScrewStripper SpringStripper RodStripper RodFront Plate w/ Screws & WashersPan Head ScrewPan Head Screw
