Nygren Dahly (Baum) Drill Head
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge
Nygren Dahly

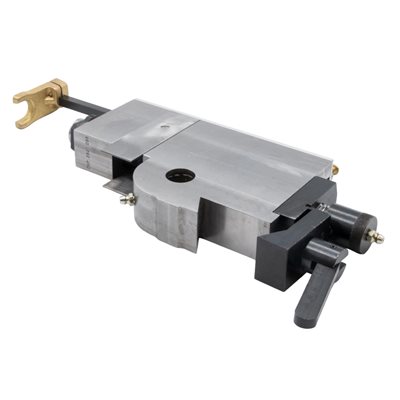

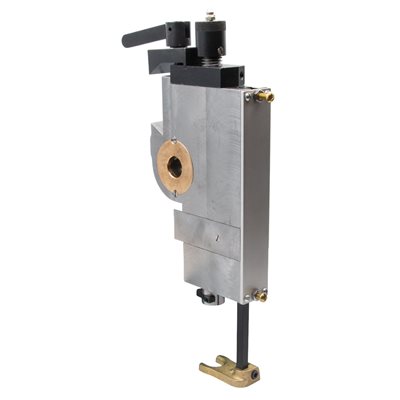

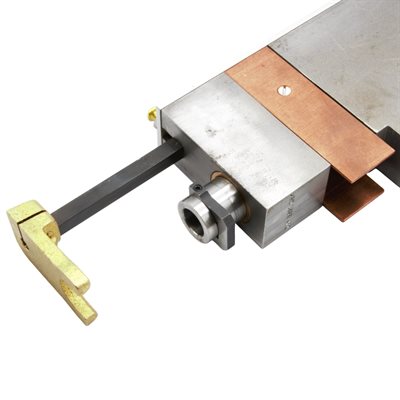

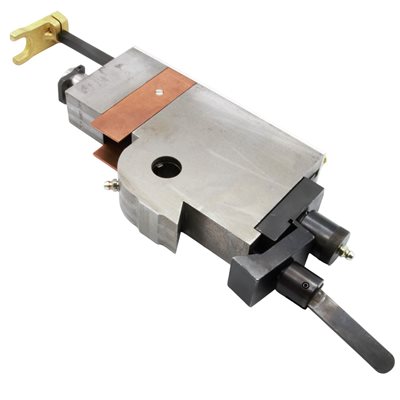

Nygren Dahly (Baum) Drill Head

Part Number: DHND

Nygren Dahly & Baum Replacement Drill Head

Checkmark Icon

Compatible with all Nygren Dahly and Baum paper drill models including D2, D3, D5, and ND5 series

Checkmark Icon

Handles drill diameter sizes from 1/8" to 1/2" diameter

Checkmark Icon

Horseshoe clip drill bit mounting style

$988.57 /EACH
List price: $988.57 /EACH
    • EACH
  • Availability: In stock

Nygren Dahly Drill Head Breakdown

Click parts in the diagram for product pages

Hex NutWasherSpindle Thrust WasherDrill Spindle SleeveSpindle Thrust BearingSpacer CollarHelical Spindle GearDrill SpindleUpper BushingClamp Screw Lever AssyDrill Spindle Sleeve CapDrill Frame Clamp screwDrill Frame CapDrill Spindle Clamp ThreadedSet Screw Set, Long & ShortFlat Head ScrewDrill Gear CapGear KeyHelical Drive GearDrive Gear WasherGrease FittingSide Plate ScrewsSide PlateLower BushingDrill HousingStripper FootCap ScrewSide PlateSide Plate ScrewStripper SpringStripper RodStripper RodFront Plate w/ Screws & WashersPan Head ScrewPan Head Screw
