Polar Shear Bolt (206016, 205525)
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge
Polar

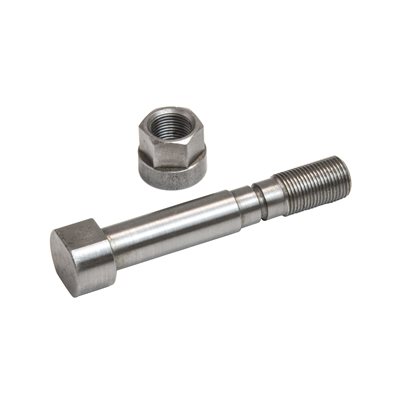

Polar Shear Bolt (206016, 205525)

Part Number: S91

Alloy shear pin (206016) used on Polar 82, 86, 90 and 92 models including model 82 EL/CE/ST, 86 EL/CE, 90 EL/CE/CS/ST, 92 CS/EL/EMC/CE

Main Shank Diameter: 9mm (.354")
Length (below head): 54mm (2.125"")
Thread: M9

Each shear bolt comes with a mating washer faced nut (205525).

Note: These do not fit 92 EMC II, 92 MON, 92 ED, 92 E, 92 X or 92 XT Cutters. See S107 for these models.

$23.00 /EACH
List price: $23.00 /EACH
  • Machine Model : Polar 82
  • Machine Model : Polar 86
  • Machine Model : Polar 90
  • Machine Model : Polar 92
    • EACH
  • Availability: In stock

You May Also Be Interested In

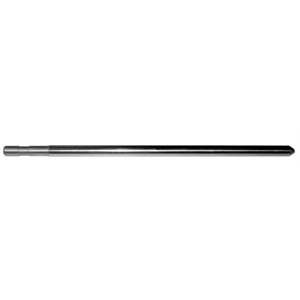

Guide Shaft (Polar 90 EL, 92 Ce, 92 EMC)
