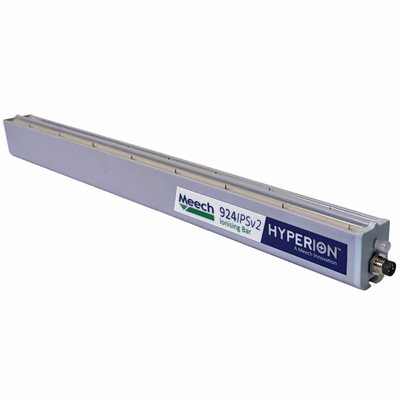

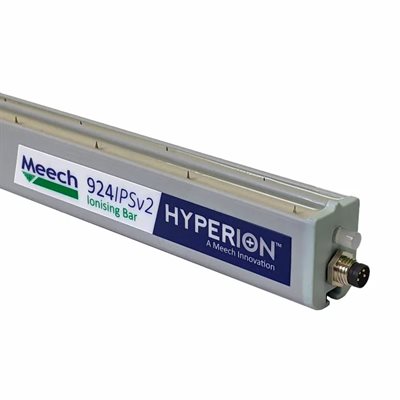

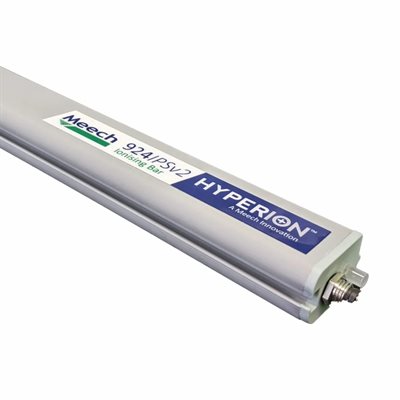

Meech Hyperion Short-Range Pulsed DC Ionizing Bar 320mm (12.50" overall)
Double-tap and hold to zoom.
Mouse over the image to zoom.

Meech Hyperion Short-Range Pulsed DC Ionizing Bar 320mm (12.50" overall)

Part Number: 924IPS-12

The Hyperion 924IPSv2 is a compact pulsed DC ionizing bar. It is used to control static electric charges in short range applications from 20-150mm (0.75" - 6"). An integral 7.5kV pulsed DC power supply allows for easy installation on printing, converting and packaging machinery. Requiring only a 24V DC supply, the 924IPSv2 removes the need to route high-voltage cabling through the machine.

Power Cord sold separately (options).

$901.00 /EACH
List price: $901.00 /EACH
    • EACH
  • Availability: Available to Order

Complete System:

- 924IPS Ionizing Bar

- 100-240V AC Power Cable or PLC/Direct Connect 24V Power Cable

Specifications

Technical Data
Typical Operating Range: 0.78" (20mm) - 5.91" (150mm)
Dimensions: 0.87" (22mm) x 1.23" (31.2mm)
Max Length: 155.91" (3960mm)
Weight: 1 lb (0.45 kg) / meter
Mounting: 'T' slot with M4 x 20mm studs
Input Voltage & Current: 24 V DC Max 500mA
Output Voltage: Adjustable, +/- up to 7.5kV pulsed DC

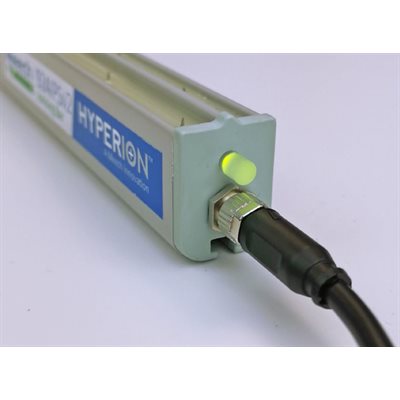

Electrical Connection: 4 Pole M8
Output Frequency: Default: 20 Hz (adjustable with BarMaster
Output Balance: Default: 54% positive, 46% negative
Max Ambient Temp: 60° C (140° F)

Documents


Data Sheet
 Instructions  Static
Causes & Cures



Accessories

Power Supply: 900IPS-SM2MS or 900IPS-PCS2

Inline Air Ionizer: 942-BE or 261V2-32-FLEX

Static Locator: 983V2

Controller: 900IPS-BM

Applications

PrintingPackagingConvertingPlastics
