Habasit Flexproof & Quickmelt Cooling Tongs 60mm (80mm Fingers)
Double-tap and hold to zoom.
Mouse over the image to zoom.

Habasit Flexproof & Quickmelt Cooling Tongs 60mm (80mm Fingers)

Part Number: CD-60

Habasit's CD-60 is a cooling tong for Quickmelt & Flexproof belt joining.

Compatible with belting up to 60mm wide x 5mm thick

Fits Flexproof finger sizes up to 80mm in length

Equipped with cooling fins to disperse heat efficiently

$347.00 /EACH
List price: $347.00 /EACH
    • EACH
  • Availability: In stock

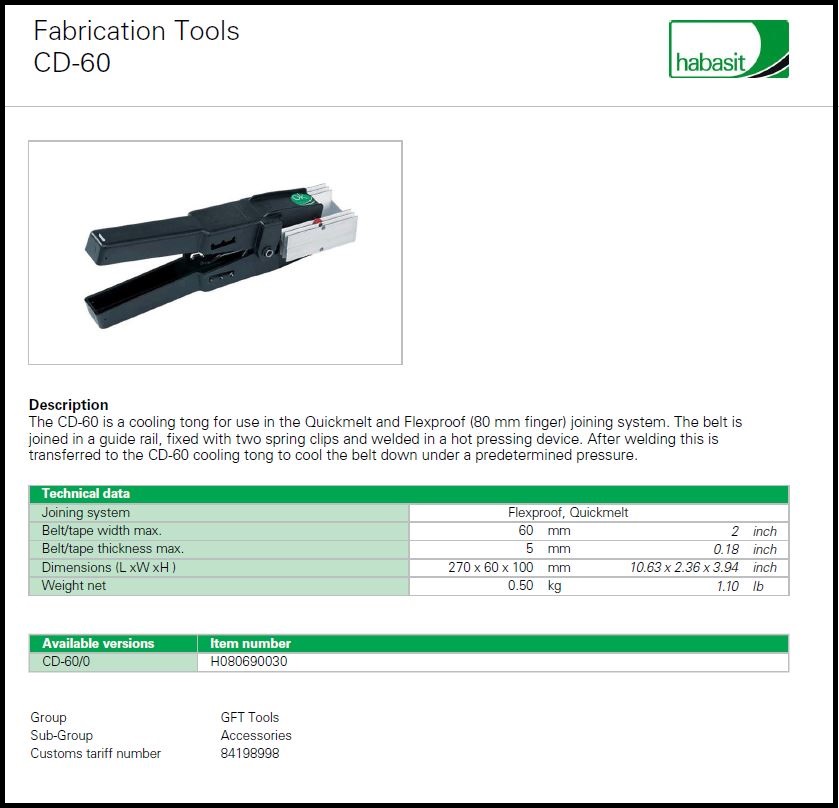

The CD-60 is a cooling tong for use in Quickmelt and Flexproof (80 mm finger) belt joining systems. The belt is joined in a guide rail fixed with two spring clips, and welded in a hot pressing device. After welding, the belt and guide rail is transferred to the CD-60 cooling tong to cool the belt down under spring-loaded pressure.

Habasit # H080690030

Specifications

Technical Data
Belt Joint Type: Quickmelt or Flexproof
Belt/Tape Max Width: 60mm (2 in)
Belt/Tape Max Thickness: 5mm (0.18 in)
Weight: 0.50 kg (1.10 lbs)
Dimensions (mm): 270 x 60 x 100mm
Dimensions (in.): 10.63" x 2.36" x 3.94"
