Habasit Flexproof Finger Cutter 60mm (6 x 30mm fingers)

Part Number: AF-61/6X30

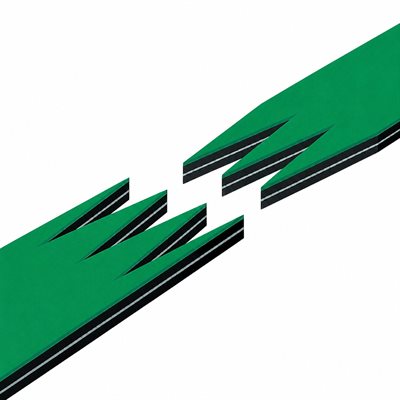

Habasit's AF-61/6X30 is a belt die-cutting tool for Flexproof finger geometry.

Cuts finger sizes of 6mm x 30mm

Compatible with belting up to 3mm in thickness

Cutting head has two blades and pin positioning, ensuring maximum accuracy

$2,698.00 /EACH
List price: $2,698.00 /EACH
    • EACH
  • Availability: Available to Order

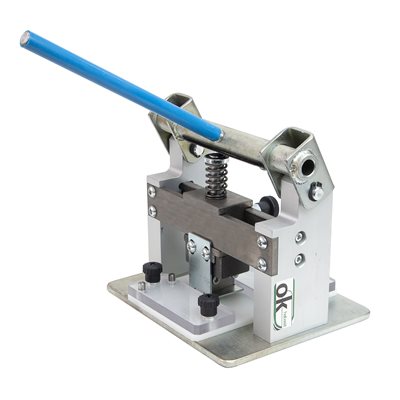

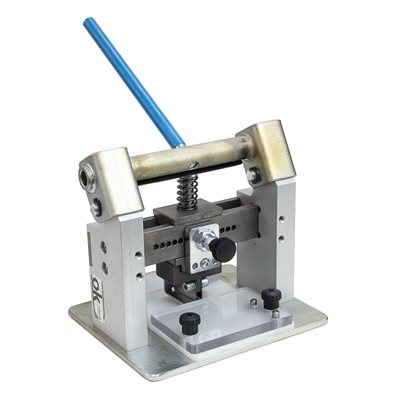

The AF-61/6x30 is a die-cutting tool specifically designed for creating 6 x 30mm Flexproof finger geometry. It is ideal for preparing machine tapes and belts up to 3 mm thick. Featuring a movable cutting head with two blades, the AF-61/6x30 can be precisely positioned using a pin, allowing adjustments in 6 mm increments. This manual process involves cutting the fingers step by step with a lever. The AF-61/6x30 is perfect for occasional on-site preparation of Hamid tapes and belts.

Specifications

Technical Data
Belt Joint Type: Flexproof
Belt/Tape Max Width: 60mm (2.36 in)
Belt/Tape Max Thickness: 3mm (0.12 in)
Weight: 4.2 kg (9.25 lb)
Dimensions (mm): 180 x 150 x 170mm
Dimensions (in.): 7.0" x 5.90" x 6.70"
