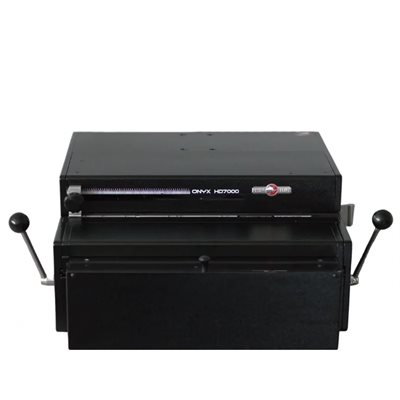

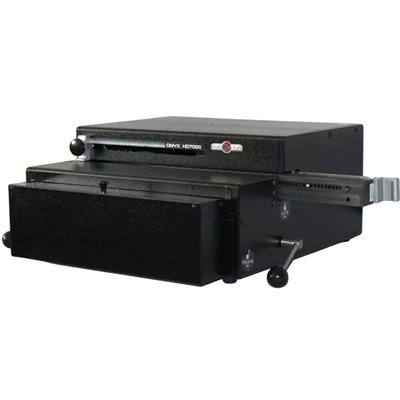

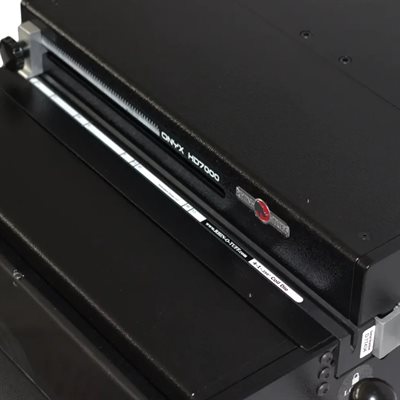

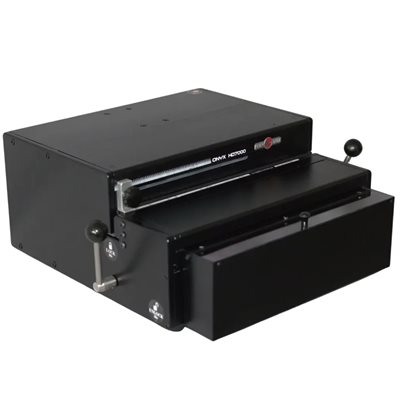

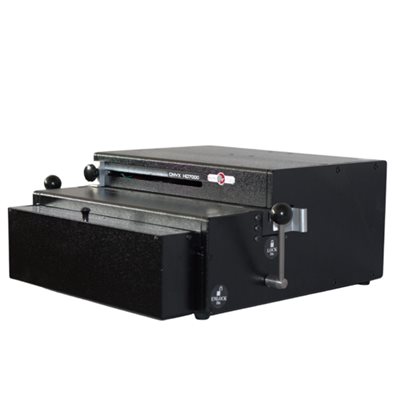

Rhin-O-Tuff ONYX HD7000 Electric Punch
Double-tap and hold to zoom.
Mouse over the image to zoom.

Rhin-O-Tuff ONYX HD7000 Electric Punch

Part Number: HD7000

The HD7000 is a 14-inch (356 mm) open-ended spiral, comb, wire and coil punching machine that features the patented “quick change” die system for changing punch patterns in 30 seconds; no tools required and no bolts or screws to replace or misplace. The HD7000 was designed with the operator in mind, offering quick, easy set-up including easy pin pulls and pre-set paper stop positions. With a three-year warranty, this is truly the industry standard.

Rated up to 40 sheets or up to 80 pages of 20-pound (80 gsm) bond paper. The number of sheets depends on the paper weight and punch pattern used. Designed for mid to high volume commercial and corporate use.

$3,604.00 /EACH
List price: $3,604.00 /EACH
  • Punch Type : Combination
  • Punch Capacity : 40 Sheets
  • Manual or Electric : Electric
  • Punch Width : 14"
    • EACH
  • Availability: Available to Order

Specifications

Technical Data
Model: ONYX HD7000
Sheet Width Capacity: 14"
Punch Capacity: 40 sheets (80 pages) of 20 lb (80 GSM) bond
Cycles Per Minute: 25
Electrical:  115 VAC, 4 Amp, 60 Hz (standard)
Dimensions: 8" H x 17" W x 16-3/4" D
Machine Weight: 87 lbs



Documents


Data Sheet Operation Manual



Videos
