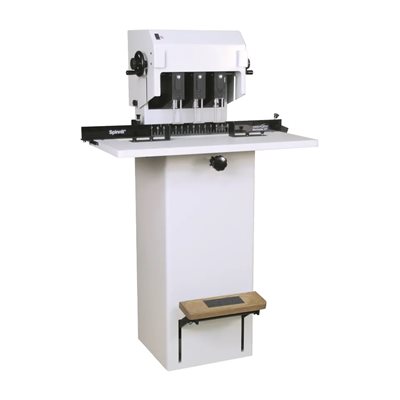

- Spinnit FMM-3 Paper Drill - 3 Spindle, Manual (2" Capacity)
Spinnit FMM-3 Paper Drill - 3 Spindle, Manual (2" Capacity)
Part Number: FMM-3
The Spinnit FMM-3 is a low maintenance floor-standing paper drill
3 Spindle manual lift operation
Max drilling capacity of 2"
Table size is 15" x 32"
List price: $6,835.00 /EACH
- Availability: Available to Order
Features

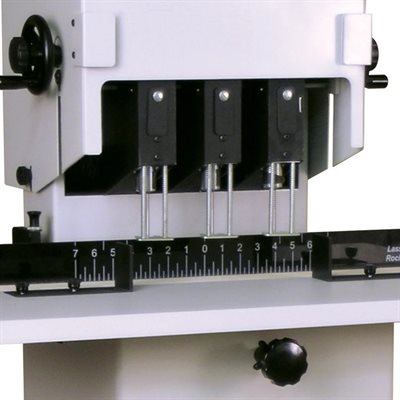

• 3 Spindle operation for standard 3-hole 4-1/4" center spacing, or nearly any custom spacing with moveable drill heads.
• Features manual foot pedal table lift, which gives the operator control over drilling speed - also avoid compressed air or hydraulic fluid
• Accepts Style A Challenge drill bits with 2" capacity (machine includes one 5/16" drill bit)
• Built for ease in operation and maximum production performance
Specifications
| Product Construction | |
|---|---|
| Table Size: | 15" x 32" |
| Max Drilling Capacity: | 2" |
| Base Footprint: | 15" x 15" |
| Table Height: | 35.5" |
| Motor: | 3/4 HP, 115V |
| Weight: | 195 lbs. |
| Shipping Weight: | 292 lbs. |
| Ships Via: | LTL Truck |
Documents
Compare Spinnit Models
| Model Name | EBM-S | EBM-2.1 | FM-2 | FMM-2 | FMM-3 | FMMH-2 | FMMH-3 | FMMH-2.1 | FMMH-3.1 |
|---|---|---|---|---|---|---|---|---|---|
| Model: |  |  |  |  |  |  |  |  |  |
| # of Spindles: | 1 | 1 | 1 | 2 | 3 | 2 | 3 | 2 | 3 |
| Max Capacity: | 2" | 2" | 2" | 2" | 2" | 2" | 2" | 2.5" | 2.5" |
| Lift: | Manual | Manual | Manual | Manual | Manual | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| Table Size: | 12" x 18" | 12" x 18" | 15" x 32" | 15" x 32" | 15" x 32" | 15" x 32" | 15" x 32" | 15" x 32" | 15" x 32" |
| Table Height: | 3.5" | 3.5" | 35.5" | 35.5" | 35.5" | 35.5" | 35.5" | 36" | 36" |
| Base Footprint: | 12" x 13.5" | 12" x 13.5" | 15" x 15" | 15" x 15" | 15" x 15" | 15" x 15" | &15" x 15" | 18" x 22" | 18" x 22" |
| Spindle Motor: | 1/4 HP, 115V | 1/4 HP, 115V | 1/4 HP, 115V | 3/4 HP, 115V | 3/4 HP, 115V | 3/4 HP, 115V | 3/4 HP, 115V | 3/4 HP, 115V | 3/4 HP, 115V |
Accessories
• Paper Drill Bits - Select from a variety of diameters, capacities, coating, etc. (2" capacity bits)
• Lubricating Wax Stick - Extend the life of your drill bits by keeping them lubricated.
• Drill Blocks - 1.5" diameter wood drill blocks provide a backing during the drilling process for clean, precise holes.
• Drill Sharpener - Keep drill bits razor sharp - a dull bit will result in poor cuts or drill bit breakage (other options available)
• Burr Removing Stone - A fine grit stone will help remove any burrs from drill bit sharpening and use
• Chip Remover - Remove plugs that build up inside paper drill bits to keep chips moving freely into the chip bin
