Stitcher 115V/60HZ 19x21-1/2 Wire, 1/2 Crown

Part Number: M19G20-AST-19211/2

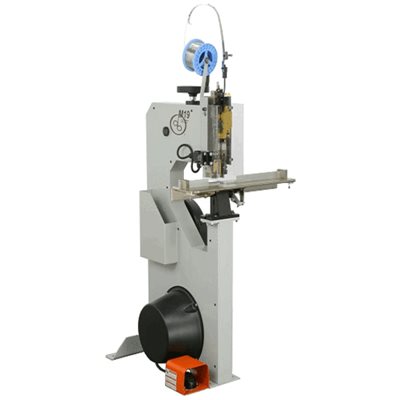

The M19 Stitcher Machine is a single-head stitcher designed to accommodate both light and heavy-duty work, stitch both flat and saddle, and is recognized for being the perfect stitcher for the smaller bindery due in part to it's 3/4" (20mm) capacity and range of crown sizes.
$9,790.00 /EACH
List price: $9,790.00 /EACH
    • EACH
  • Availability: Available to Order

Specifications

Technical Data
Model: M19 Stitcher
Capacity: 2 sheets up to 3/4"
Crown Size: 1/2"
Wire Sizes: 19 x 21.5 gauge
Throat Depth: 14"
Clinch: Flat Stitching and Saddle Stitching
Electrical: 115 VAC, 60 Hz
Dimensions: 65" H x 33" W x 29" L
Shipping Weight: 396 lbs



Documents

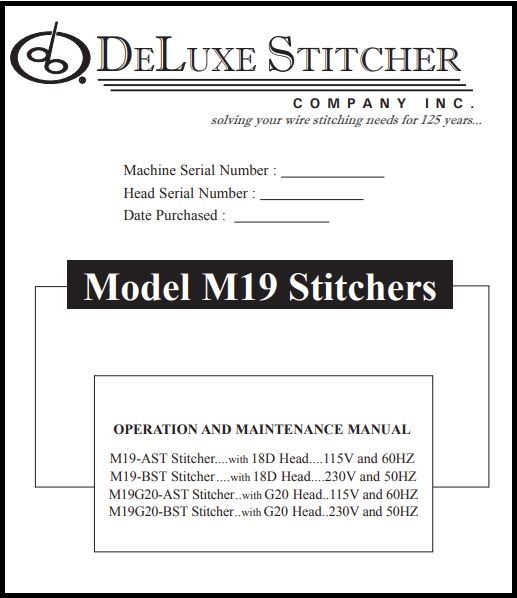

Operation Manual







Motor Assemblies

Click part numbers in the diagram for product pages

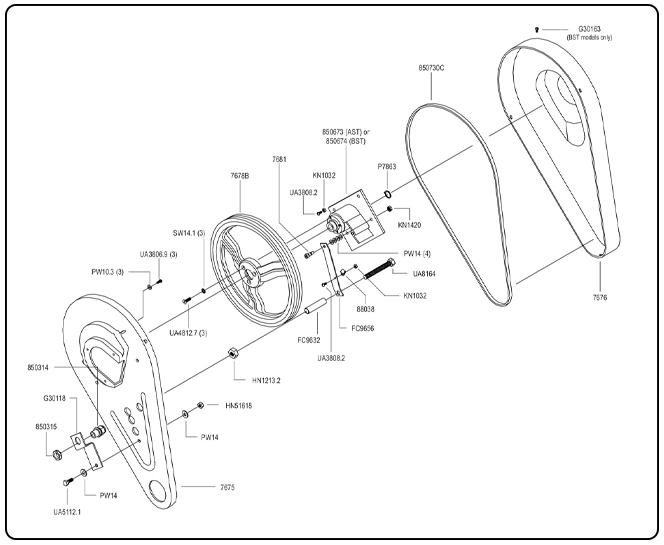

Guard Assembly

Click part numbers in the diagram for product pages

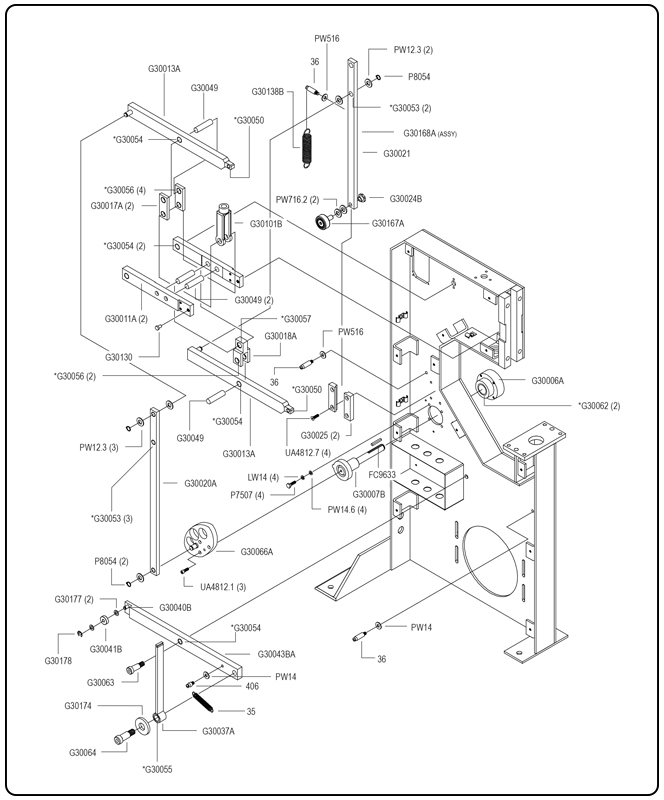

Internal Assemblies

Click part numbers in the diagram for product pages



External Assemblies

Click part numbers in the diagram for product pages



Wire and Guard Assemblies

Click part numbers in the diagram for product pages
