Stitcher 115V/60HZ, 20 Ga Rd Wire, 1/2 Crown

Part Number: M27G20-AST-201/2

The Deluxe M27 Stitcher Machine is a multi-head stitcher designed to accommodate both light and heavy-duty work, stitch both flat and saddle, and is recognized for being the highest capacity multiple head stitcher due to its ability to reliably stitch any thickness of stock from 2 sheets to 3/4” (20mm).
$20,950.00 /EACH
List price: $20,950.00 /EACH
    • EACH
  • Availability: Available to Order

Specifications

Technical Data
Model: M27 Stitcher
Capacity: 2 sheets up to 3/4"
Crown Size: 1/2"
Wire Sizes: 20 gauge
Throat Depth: 14"
Clinch: Flat Stitching and Saddle Stitching
Electrical: 115 VAC, 60 Hz
Dimensions: 65" H x 35" W x 30" L
Shipping Weight: 580 lbs



Documents

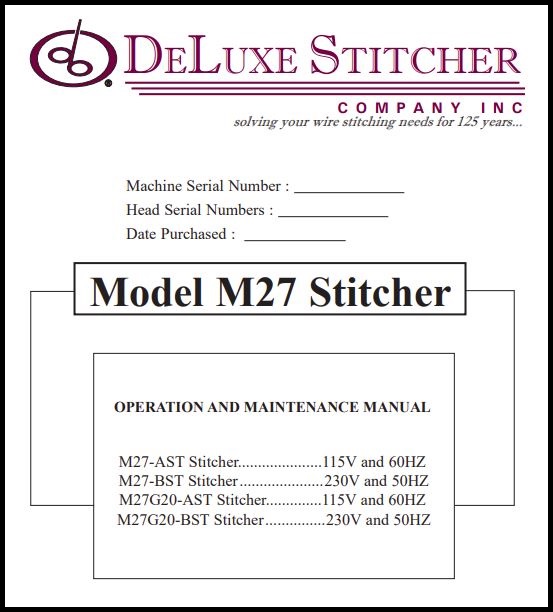

Operation Manual



Motor Assemblies

Click part numbers in the diagram for product pages



Guard Assembly

Click part numbers in the diagram for product pages



Internal Assemblies

Click part numbers in the diagram for product pages



External Assemblies

Click part numbers in the diagram for product pages



Wire and Guard Assemblies

Click part numbers in the diagram for product pages



Driver and Bender Rail Assemblies

Click part numbers in the diagram for product pages
