Stitcher Head Assembly, 1/2 Cr, 24 Rd Wire, G20 - Harris/McCain

Part Number: G20SHD241/2

Like the G8, the G20 head features a side-feed design eliminating the need for a Swivel, which results in increased production speeds and decreased down-time. The G20 Head can be used on all dual-drive stitchers or saddle-binders which currently use 18D or Hohner 70/20 Heads.
$4,040.00 /EACH
List price: $4,040.00 /EACH
    • EACH
  • Availability: Available to Order
 Specifications
Machine Model Compatibility: Harris, McCain, Sheridan
Capacity: 2 Sheets to 3/4"
Crown Size: 1/2"
Wire Sizes: 24 gauge round
Minimum Center-to-Center Distance: 2-3/4"
Speed: 18,000 stitches per hour

 G20 Operators Manual

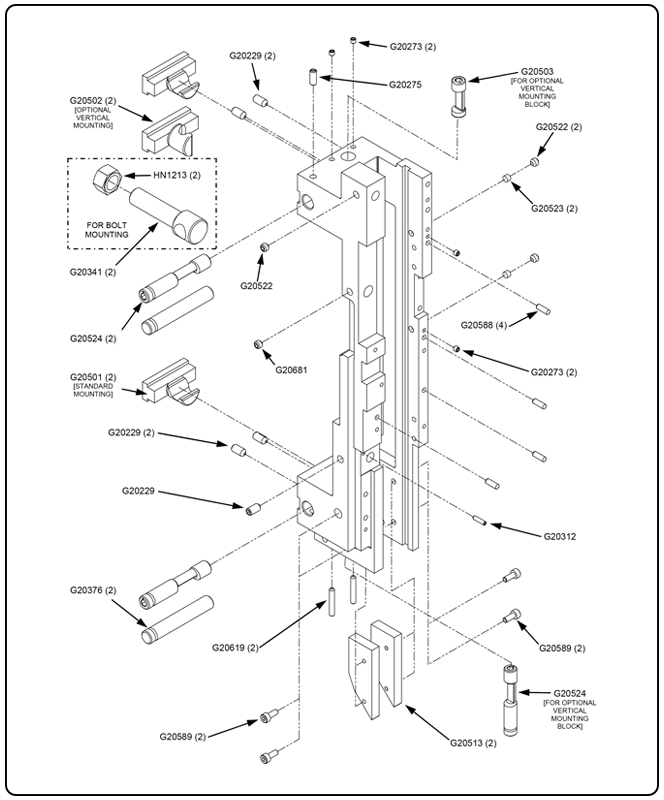

Bonnet Sub-Assembly (Figure 1)

Click part numbers in the diagram for product pages

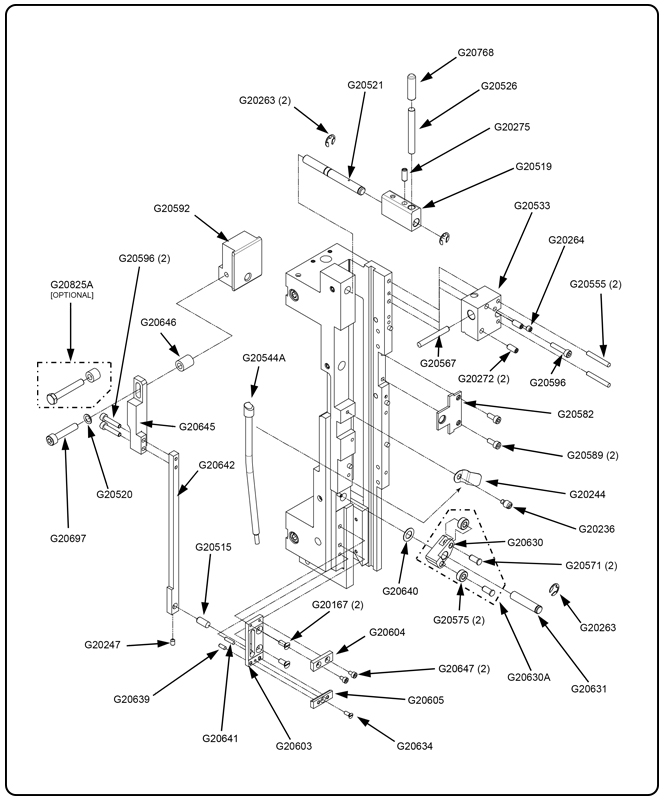

Bonnet Sub-Assembly (Figure 2)

Click part numbers in the diagram for product pages

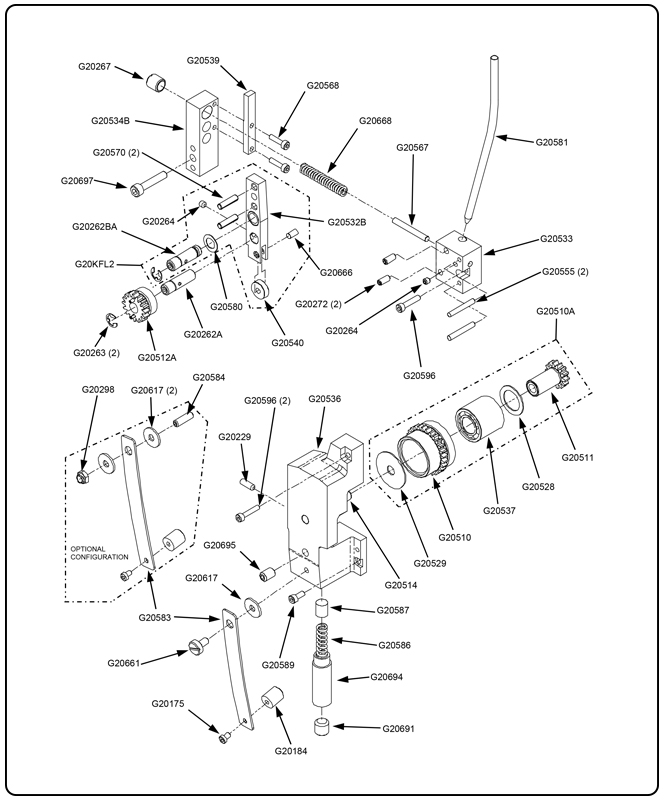

Feed Lever and Feed Gear Assemblies

Click part numbers in the diagram for product pages

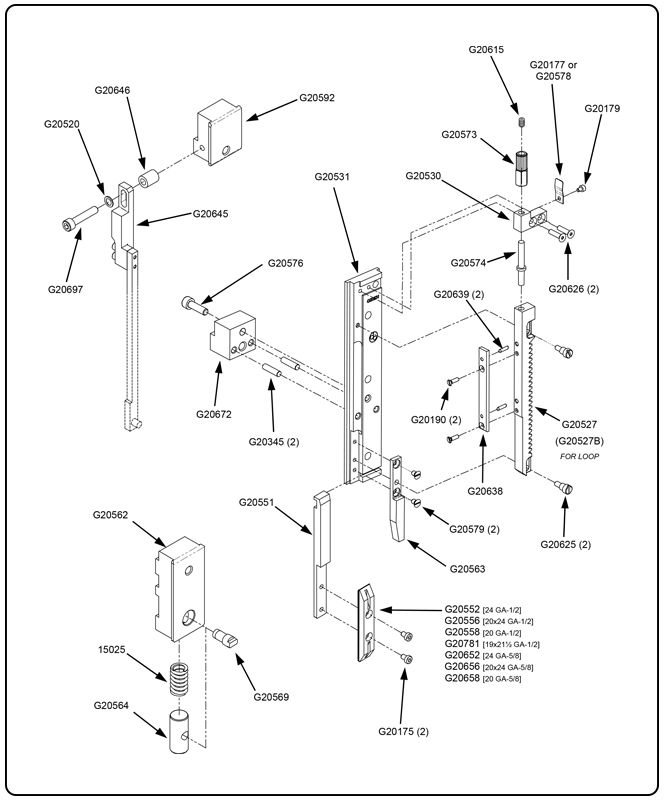

Driving and Feed Slide Assemblies

Click part numbers in the diagram for product pages

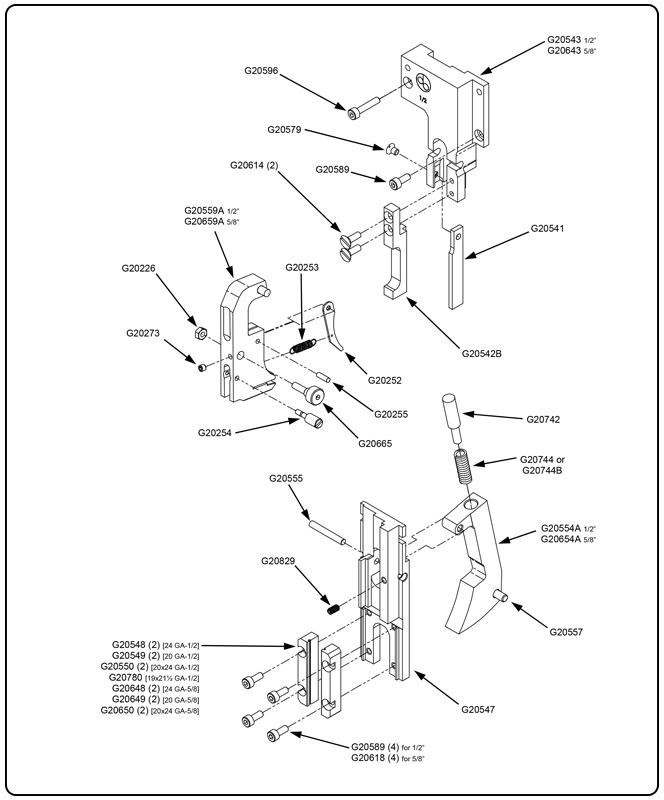

Driving and Feed Slide Assemblies (Figure 2)

Click part numbers in the diagram for product pages

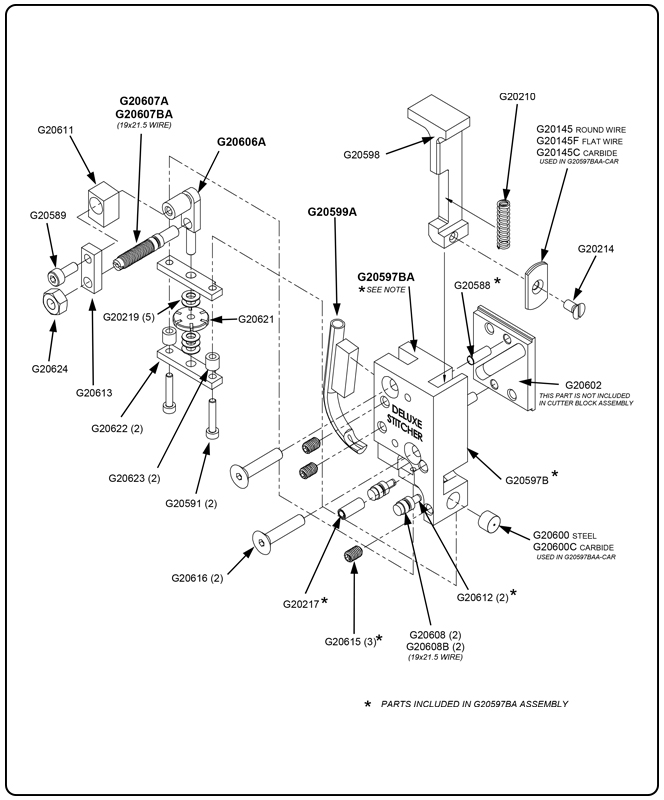

Cutter Block Assembly

Click part numbers in the diagram for product pages

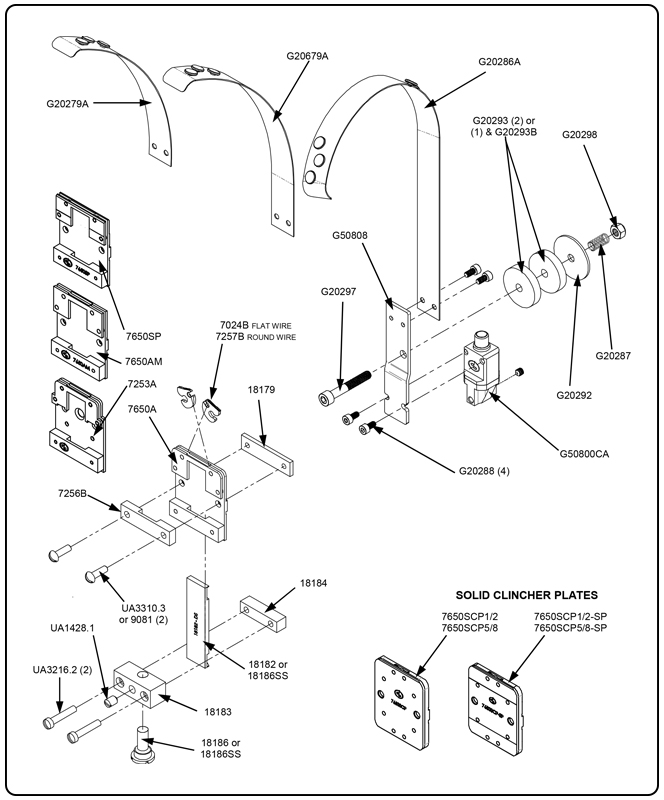

Wire Guide Bracket, Spring and Clincher Plate Assemblies

Click part numbers in the diagram for product pages



Loop Stitch Assemblies

Click part numbers in the diagram for product pages
