Muller Martini

Stitcher Head Assembly

Part Number: DB45MMHD257/16

The DB45 Head is a slim alternative Stitcher Head for Muller-Martini saddle binders. The DB45 can be used on all stitchers or collators which currently use the HK45 and HK55 Heads - Muller #'s 0305.0100, 0305.0400 & 1509.0075.

Includes Stitcher Head, Clincher Assembly and Wire Guide

$2,540.00 /EACH
List price: $2,540.00 /EACH
    • EACH
  • Availability: Available to Order

Specifications

 Technical Data
Machine Model Compatibility: Minuteman (Built before 2004)
Capacity: 2 Sheets to 3mm
Crown Size: 10mm
Wire Size: 25 gauge round  (0.6mm)
Min. Center-to-Center:  45mm
Clincher Assembly: 2" tall square



Documents

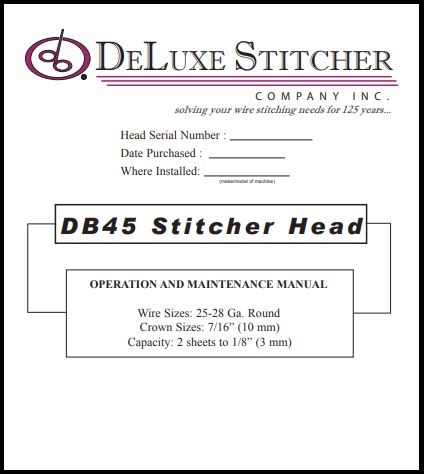

Operation Manual



Bonnet and Wire Guide Spring Sub-Assemblies

Click part numbers in the diagram for product pages



Bonnet and Supporter Sub-Assemblies

Click part numbers in the diagram for product pages



Driver and Bender Inserts

Click part numbers in the diagram for product pages



Complete Cutter Box Assembly

Click part numbers in the diagram for product pages



Feed Gear Assembly

Click part numbers in the diagram for product pages



Wire Holder Assembly

Click part numbers in the diagram for product pages



Clincher Plate Assemblies (Standard, Medium and Long)

Click part numbers in the diagram for product pages
