Muller Martini

Stitcher Head Assembly, Long Clincher Plate

Part Number: DB75LPHD251/2

The DB75 is a high-quality alternative replacement for Muller HK75 stitcher heads - Muller #'s 0881.8170 & 0881.8070. Almost all parts are interchangeable between the DB75 and Muller original HK75 heads.

Includes the stitcher head, clincher assembly and wire guide.

$2,840.00 /EACH
List price: $2,840.00 /EACH
    • EACH
  • Availability: Available to Order

Specifications

 Technical Data
Machine Model Compatibility: Bravo Plus, Prima (built after Jan. 2004)
Capacity: 2 Sheets to 5mm
Crown Size: 13mm
Wire Size: 25 gauge round  (0.6mm)
Min. Center-to-Center:  75mm
Clincher Assembly: 4.8" tall rectangle



Documents


Operation Manual



Bonnet and Wire Guide Spring, Sub-Assemblies

Click part numbers in the diagram for product pages

Driver and Bender Inserts

Click Part Numbers in the diagram for product pages

Cutter Box Assembly

Click part numbers in the diagram for product pages



Feed Gear Assembly

Click part numbers in the diagram for product pages



Wire Holder Assemblies

Click part numbers in the diagram for product pages

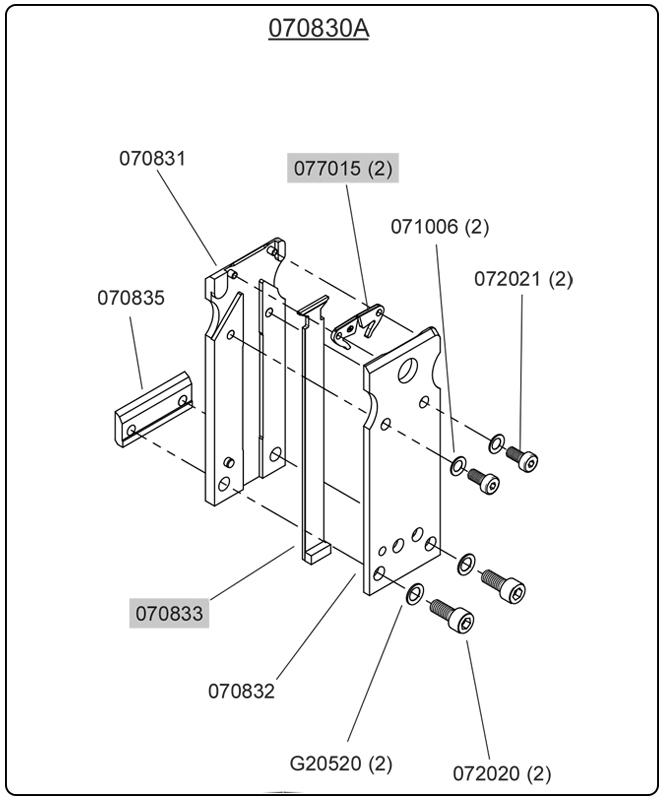

Tall Clincher Plate

Used on Bravo/Prima machines after 2004. Used on all Optima & Supra machines.

Click part numbers in the diagram for product pages
