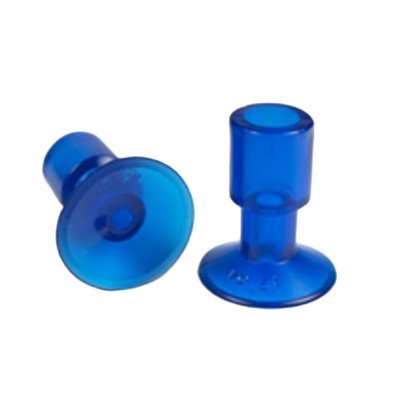

Blue Vinyl Vacuum Cup 1.95H x 1.64W x .64B Style C
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge

Blue Vinyl Vacuum Cup 1.95H x 1.64W x .64B Style C

Part Number: VC-51

 Dimensions in mm
Outer Lip Diameter 1.64 41.7
Mounting Stem ID 0.64 16.3
Overall Height 1.95 49.5

  • Contact us for pricing

  • Availability: Available to Order
 General Information
 Material: Vinyl
 Mounting Type: Push on  Cleats: No
 Bellows: 0  Suggested Use: Carton Feeding

   Style C Dimensions in mm
Dimension A 1.64 41.7
Dimension B 1.95 49.5
Dimension C 0.3 7.6
Dimension D 0.94 23.9
Dimension E 0.64 16.3
Dimension E1 0.85 21.6
Dimension F 0.25 6.4
Dimension H 0.2 5.1

MATERIAL SPECIFICATIONS
 Material Working
Temperature		 Wear
Resistance		 Oil Resistance Durometer
 Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
FDA Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
Oil Resistant FDA Vinyl +32 - +125 F Good Excellent A40 - A60 Range
Polyurethane +32 - +150 F  Good  Good  A20 - A70 Range
 Silicone -50 - +400 F   Good  Good  A40 - A55 Range
 FDA Silicone -50 - +400 F  Good  Good  A40 - A55 Range
