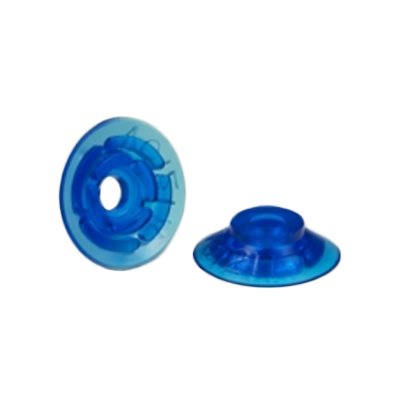

Blue Vinyl Vacuum Cup .29H x 1.18W x .28B w/ Cleats Style B
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge

Blue Vinyl Vacuum Cup .29H x 1.18W x .28B w/ Cleats Style B

Part Number: VC-121A

 Dimensions in mm
Outer Lip Diameter 1.18 30
Mounting Stem ID 0.28 7.1
Overall Height 0.29 7.4
1x $5.15 /EACH
25x $4.92 /EACH
50x $4.42 /EACH
100x $3.80 /EACH
200x $3.18 /EACH
List price : $5.15 /EACH
    • EACH
  • Availability: Available to Order
 General Information
 Material: Vinyl
 Mounting Type: Snap Over  Cleats: Yes
 Bellows: 0  Suggested Use: Pick and Place

   Style B Dimensions in mm
Dimension A 1.18 30
Dimension B 0.29 7.4
Dimension C 0.21 5.3
Dimension D 0.6 15.2
Dimension E 0.39 9.9
Dimension E1 0.04 1
Dimension F 0.28 7.1
Dimension H 0.01 0.3

MATERIAL SPECIFICATIONS
 Material Working
Temperature		 Wear
Resistance		 Oil Resistance Durometer
 Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
FDA Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
Oil Resistant FDA Vinyl +32 - +125 F Good Excellent A40 - A60 Range
Polyurethane +32 - +150 F  Good  Good  A20 - A70 Range
 Silicone -50 - +400 F   Good  Good  A40 - A55 Range
 FDA Silicone -50 - +400 F  Good  Good  A40 - A55 Range
