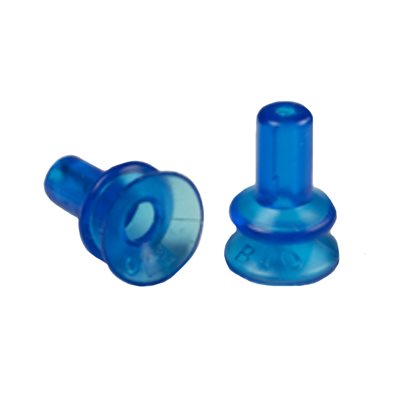

Blue Vinyl Vacuum Cup .55H x .41W x .06B Style K
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge

Blue Vinyl Vacuum Cup .55H x .41W x .06B Style K

Part Number: VC-B10

 Dimensions in mm
Outer Lip Diameter 0.41 10.4
Mounting Stem ID 0.06 1.5
Overall Height 0.55 14

  • Contact us for pricing

  • Availability: Available to Order
 General Information
 Material: Vinyl
 Mounting Type: Push on
 Bellows: 1  Suggested Use: Label Placement

   Style K Dimensions in mm
 Dimension A 0.41 10.4
 Dimension B 0.55 14
 Dimension C 0.23 5.8
 Dimension D 0.2 5.1
 Dimension F 0.06 1.5

MATERIAL SPECIFICATIONS
 Material Working
Temperature		 Wear
Resistance		 Oil Resistance Durometer
 Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
FDA Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
Oil Resistant FDA Vinyl +32 - +125 F Good Excellent A40 - A60 Range
Polyurethane +32 - +150 F  Good  Good  A20 - A70 Range
 Silicone -50 - +400 F   Good  Good  A40 - A55 Range
 FDA Silicone -50 - +400 F  Good  Good  A40 - A55 Range
