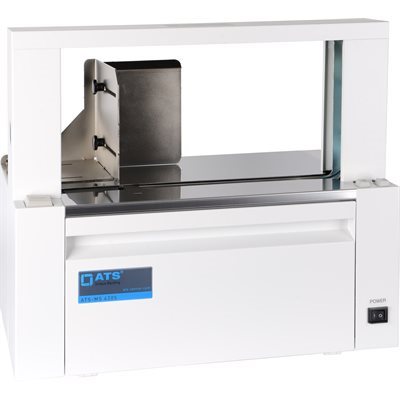

ATS MS 420S Banding Machine

Part Number: MS-420S-30

Extremely reliable heat-seal table-top banding machine for formats up to A3

   26 bands/minute
   30mm, 40mm, or 50mm band width
   Max product size: 16.50" width x 7.85" height
$7,675.00 /EACH
List price: $7,675.00 /EACH
  • Band Width : 30mm
  • Max Product Size (mm) W x H : 420 x 200mm
  • Max Product Size (in) W x H : 16.50 x 7.75 in.
  • Seal Type : Heat-Seal
    • EACH
  • Availability: Available to Order

The ATS-MS 420S 30 mm is a versatile, portable table banding machine that utilizes Heatseal technology for secure sealing. You can add an optional jumbo dispenser which minimizes the need for frequent band changes and allows the machine to operate independently. This model can handle product sizes up to 420 x 200 mm and offers adjustable band tension between 5 - 20 N. It efficiently uses 30 mm wide paper and film bands, capable of banding up to 26 products per minute.

Features

• Bands with both paper & plastic materials

• Easy to set-up, use and maintain

• Utilizes an impulse heat seal

• Fixed arch

Long roll dispenser option

• Highly versatile for limitless applications

• Does not require compressed air

• Multiple material selection options

Specifications

 Technical Data
Model: MS-420S
Max Product Width: 420mm (16.54 in)
Min Product Width: 20mm (0.787 in.)
Max Product Height: 200mm (7.87 in.)
Min Product Height: 1mm (0.04 in.)
Speed: Up to 26 bandings/min.
Machine Height: 470mm (18.50 in.)
Machine Width: 560 mm (22.05 in.)
Machine Depth:  330mm (13.00 in.)
Weight: 40kg (88 lbs)

Documents


Data Sheet  ATS Heat Seal Line
