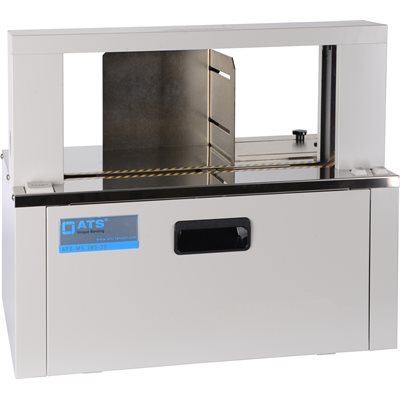

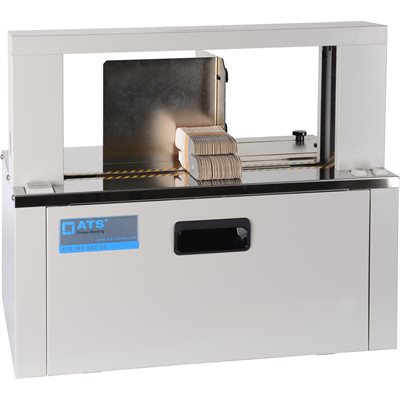

ATS MS 380 Banding Machine
Part Number: MS-380
Table-top banding machine for narrow bands
 | 26 bands/minute |
| | 20mm band width |
| | Max product size: 14.95" width x 6.70" height |
Feel free to give us a call or reach out to our contact form with this part number for pricing and questions.
-
Contact us for pricing
- Band Width : 20mm
- Max Product Size (mm) W x H : 380 x 170mm
- Max Product Size (in) W x H : 14.95 x 6.70 in.
- Seal Type : Heat-Seal
- Availability: Available to Order
The ATS-MS series portable banding machines represent the pinnacle of heat seal banding technology. These industrial heat sealers are incredibly user-friendly and produce an instant, impulse heat seal without needing any warm-up time, virtually eliminating the risk of burn-related injuries to operators and maintenance staff.
Features
• Band with both paper & plastic materials
• Easy to set-up, use and maintain
• Utilizes an impulse heat seal
• Long roll dispenser option
• Highly versatile for limitless applications
• Does not require compressed air
Specifications
| Technical Data | |
| Model: | MS-380 |
| Max Product Width: | 380mm (14.95 in) |
| Min Product Width: | 30mm (1.18 in.) |
| Max Product Height: | 170mm (6.70 in.) |
| Min Product Height: | 10mm (0.40 in.) |
| Speed: | Up to 26 bandings/min. |
| Machine Height: | 452mm (17.80 in.) |
| Machine Width: | 520 mm (20.50 in.) |
| Machine Depth: | 300mm (11.80 in.) |
| Weight: | 35kg (77 lbs) |
Documents
 |  |
| Data Sheet | ATS Heat Seal Line |
