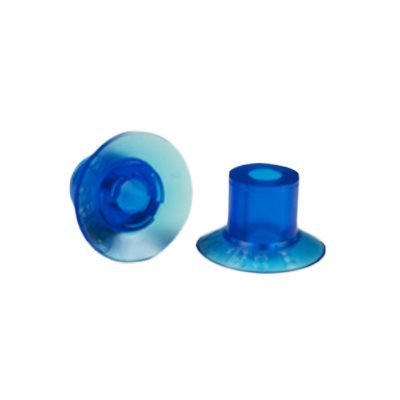

Blue Vinyl Vacuum Cup .47H x .79W x .2B Style C
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge

Blue Vinyl Vacuum Cup .47H x .79W x .2B Style C

Part Number: VC-158B

 Dimensions in mm
Outer Lip Diameter 0.79 20.1
 Mounting Stem ID 0.2 5.1
Overall Height 0.47 11.9

  • Contact us for pricing

  • Availability: Available to Order
 General Information
 Material: Vinyl
 Mounting Type: Push on  Cleats: Yes
 Bellows: 0  Suggested Use: Carton Feeding

   Style C Dimensions in mm
 Dimension A  0.79 20.1
 Dimension B 0.47 11.9
 Dimension C 0.11 2.8
 Dimension D 0.44 11.2
 Dimension E 0.2 5.1
 Dimension F 0.2 5.1
Dimension H 0.08 2

MATERIAL SPECIFICATIONS
 Material Working
Temperature		 Wear
Resistance		 Oil Resistance Durometer
 Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
FDA Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
Oil Resistant FDA Vinyl +32 - +125 F Good Excellent A40 - A60 Range
Polyurethane +32 - +150 F  Good  Good  A20 - A70 Range
 Silicone -50 - +400 F   Good  Good  A40 - A55 Range
 FDA Silicone -50 - +400 F  Good  Good  A40 - A55 Range
