Eastey SB-2HD Heavy Duty Side Belt Case Taper w/ 2" Tape Head
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge
Eastey

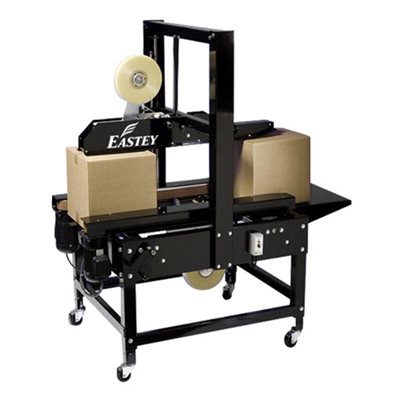

Eastey SB-2HD Heavy Duty Side Belt Case Taper w/ 2" Tape Head

Part Number: 5000710

The SB-2HD from Eastey delivers the dependable quality you expect, with a robust design that minimizes maintenance and enhances production efficiency. This model handles a wide range of box sizes, from light to heavy and narrow to small, and is especially effective with void-fill cases that other tapers struggle with.

It offers quick, on-the-fly adjustments for boxes as short as 4.5 inches, using easy-to-operate knobs and cranks. The SB-2HD features the Easy-Taper Quick-Load system for sealing boxes as narrow as 4 inches wide and as short as 2 inches tall, surpassing the capabilities of standard case tapers. It can be configured for left-to-right operations at no extra cost and does not require compressed air.

$7,395.00 /EACH
List price: $7,395.00 /EACH
    • EACH
  • Availability: Available to Order

Features

• Plug-in and go operation
• Powder coated 12 gauge steel
• Interchangeable top and bottom tape cartridges
• Industrial strength side belts
• Adjustable extensions
• Fast and easy box size changes
• No air required
• Low maintenance
• Accommodates wide box size change

Specifications

 Specifications
Sealer Type:  Side belt, top and bottom sealer
Machine Materials:  Industrial strength 12 gauge steel, powder coated
Belt Speed  75 feet/minute
Tape Speed:  30 cases/minute (depending on box size)
Height:   Adjustable from 22.5" to 30.5" conveyer heights
Minimum Box Size:  4.5" Length x 4" Width x 2" Depth
Maximum Box Size:  Infinite Length x 20" Width x 25.5" Depth
Tape Size:  2" wide pressure sensitive tape (1.5" and 3" optional), 15" diameter rolls
Air Requirements:  None
Drive Motor  Two (2) 1/4 HP drive motors
Electrical:  110 VAC, 60 Hz, 5A

Documents


Data Sheet User Guide Taper Overview
