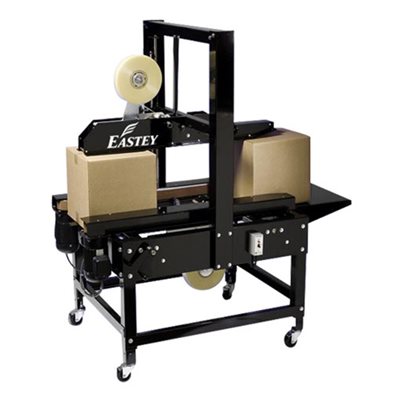

Eastey SB-3HD Heavy Duty Side Belt Case Taper w/ 3" Tape Head
Double-tap and hold to zoom.
Mouse over the image to zoom.

Eastey SB-3HD Heavy Duty Side Belt Case Taper w/ 3" Tape Head

Part Number: 5000904

The SB-2HD from Eastey delivers the dependable quality you expect, with a robust design that minimizes maintenance and enhances production efficiency. This model handles a wide range of box sizes, from light to heavy and narrow to small, and is especially effective with void-fill cases that other tapers struggle with.

It offers quick, on-the-fly adjustments for boxes as short as 4.5 inches, using easy-to-operate knobs and cranks. The SB-2HD features the Easy-Taper Quick-Load system for sealing boxes as narrow as 4 inches wide and as short as 2 inches tall, surpassing the capabilities of standard case tapers. It can be configured for left-to-right operations at no extra cost and does not require compressed air.

$7,695.00 /EACH
List price: $7,695.00 /EACH
    • EACH
  • Availability: Available to Order

Features

• Plug-in and go operation
• Powder coated 12 gauge steel
• Interchangeable top and bottom tape cartridges
• Industrial strength side belts
• Adjustable extensions
• Fast and easy box size changes
• No air required
• Low maintenance
• Accommodates wide box size change

Specifications

Technical Data
Sealer Type: Side Belt, Top & Bottom Sealer
Machine Construction: Industrial strength 12 gauge steel, powder coated
Belt Speed: 75 ft / min
Tape Speed: 30 cases / min(depending on box size)
Conveyor Height: Adjustable from 22.5" to 30.5"
Min Box Size: 4.5" L x 4" W x 2" D
Max Box Size: 20" W x 25.5" D
Tape Size: 3" wide pressure sensitive tape (1.5" and 2" optional) x 15" diameter
Air Requirements: N/A
Electrical: 110 VAC, 60 Hz, 6A
Drive Motor: Two (s) 1/4 HP drive motors

Documents


Data Sheet User Guide Taper Overview
