CT-18/40E Polyester Folder Gluer Belt 3/4"
Part Number: CT-18/40E-3/4
Main Industry Segments: Cardboard converting, Paper manufacturing and processing
Applications: Folder-gluer belt
Special Features: Abrasion resistant, adhesive-free joint, constant coefficient of friction, dimensionally stable longitudinal flexibility, outstanding flex-fatigue
$5.67 /PER FOOT
List price: $5.67 /PER FOOT
List price: $5.67 /PER FOOT
- Belting Thickness (mm) : 4.00mm
- Belting Joining Method : Flexproof
- Availability: Available to Order

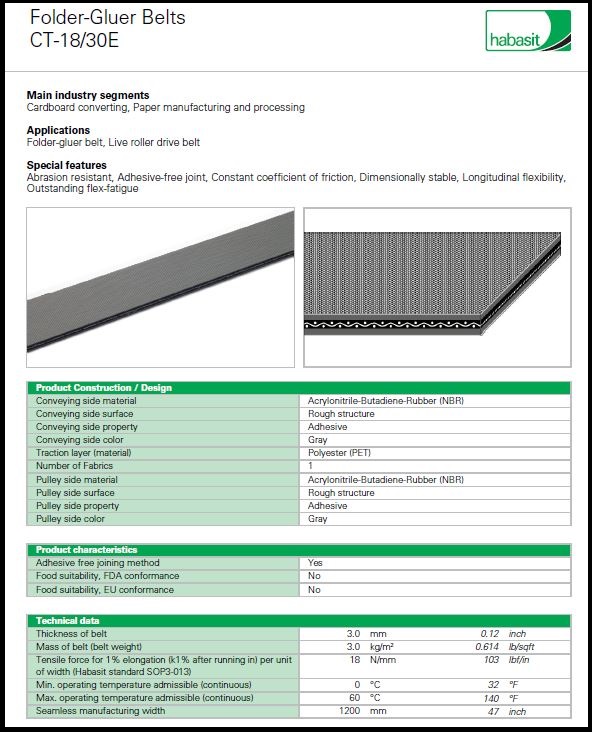

Specifications
| Product Construction | |
|---|---|
| Conveying Side Material: | Acrylonitrile-Butadiene-Rubber (NBR) |
| Conveying Side Surface: | Rough Structure |
| Conveying Side Property: | Adhesive |
| Conveying Side Color: | Gray |
| Traction Layer: | Polyester (PET) |
| Number of Fabrics: | 1 |
| Pulley Side Material: | Acrylonitrile-Butadiene-Rubber (NBR) |
| Pulley Side Surface: | Rough Structure |
| Pulley Side Property: | Adhesive |
| Pulley Side Color: | Gray |
| Product Data | |
|---|---|
| Joining Method: | Flexproof |
| Belt Thickness: | 4mm (0.16 in) |
| Tensile Force (1% elongation/unit of width): | 18 N/mm (103 lbf/in) |
| Min. Operating Temp: | 0°C (32°F) |
| Max Operating Temp: | 60°C (140°F) |
| Min Pulley Diameter: | 40mm (1.57 in) |
Documents

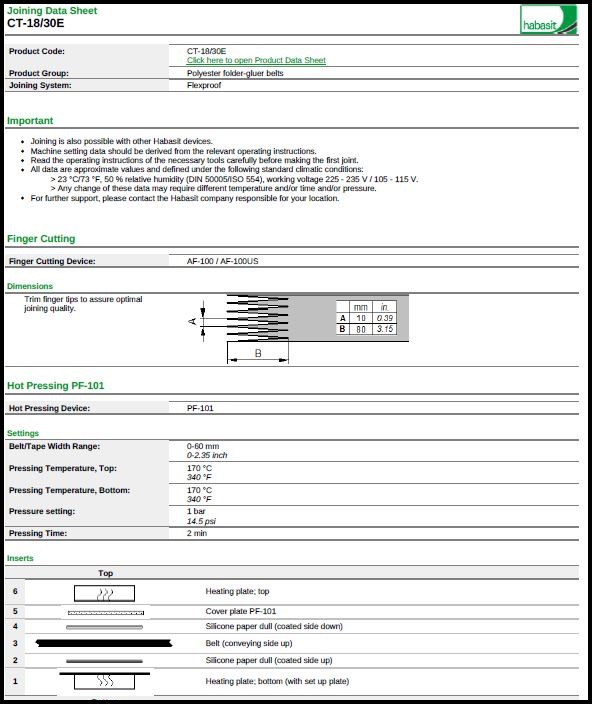

Joining Tools
Cutters: AF-42, AF-61/6x30, or AF-100/US-80
