XVT-2237 Polyamide Folder-Gluer Belt 1/2"
Part Number: XVT-2237-1/2
Main Industry Segments: Cardboard converting, Paper manufacturing and processing
Applications: Folder-gluer belt, processing belt, tube winder belt
Special Features: Abrasion resistant, constant coefficient of friction, forgiving in case of short term shock-like overloads, robustness
$3.13 /PER FOOT
List price: $3.13 /PER FOOT
List price: $3.13 /PER FOOT
- Belting Thickness (mm) : 3.00mm
- Belting Joining Method : Thermofix
- Availability: Available to Order
Specifications
| Product Construction | |
|---|---|
| Conveying Side Material: | Acrylonitrile-Butadiene-Rubber (NBR) |
| Conveying Side Surface: | Rough Structure |
| Conveying Side Property: | Adhesive |
| Conveying Side Color: | Light Green |
| Traction Layer: | Polyamide |
| Number of Fabrics: | 2 |
| Pulley Side Material: | Acrylonitrile-Butadiene-Rubber (NBR) |
| Pulley Side Surface: | Rough Structure |
| Pulley Side Property: | Adhesive |
| Pulley Side Color: | Yellow |
| Product Data | |
|---|---|
| Joining Method: | Thermofix |
| Belt Thickness: | 3.00mm (0.12 in) |
| Tensile Force (1% elongation/unit of width): | 5 N/mm (29 lbf/in) |
| Min. Operating Temp: | 0°C (32°F) |
| Max Operating Temp: | 100°C (212°F) |
| Min Pulley Diameter: | 30mm (1.18 in) |
Documents

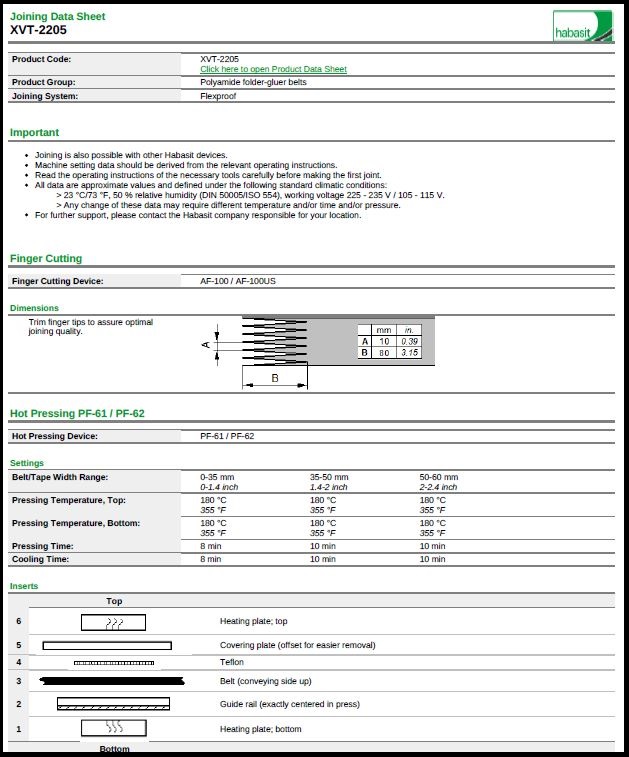

Joining Tools
Skiver: AT-200M
Heater: PT-300
