Habasit PT-103 Thermofix Hot Press 100mm
Part Number: PT-103
Habasit's PT-103 is a heating tool for Thermofix belt joining.
Join belts up to 100mm wide x 3mm thick
Compatible with skive lengths up to 50mm
Working temperature is 120°C (248°F)
$878.70 /EACH
List price: $878.70 /EACH
List price: $878.70 /EACH
- Availability: In stock

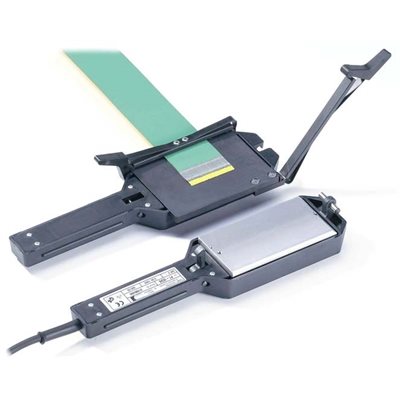

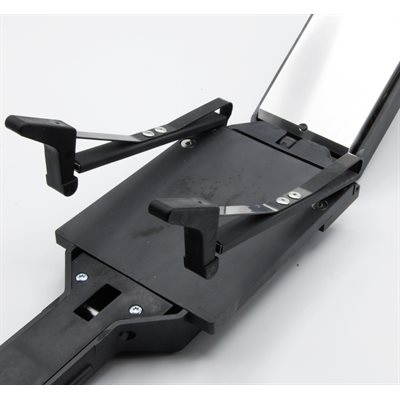

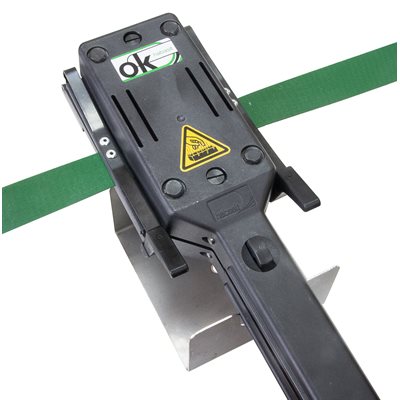

The PT-103 is a hot pressing device for joining Habasit belts using the Thermofix system (skived and bonded). The device is extremely compact. Top and bottom plates can be separated with a handle‚ allowing belts to be joined in locations with limited space. A simple clamping fixture ensures the correct positioning of the belt ends.
Must be used with belting that requires additional adhesive (Fixol/Vulcol). Does not get hot enough for belting that has internal glue.
Habasit # H080690100
Specifications
| Technical Data | |
|---|---|
| Belt Joint Type: | Thermofix |
| Belt/Tape Max Width: | 100mm (4 in) |
| Belt/Tape Max Thickness: | 3mm (0.10 in) |
| Max Skiving Length: | 50mm (2 in) |
| Working Temp: | 120°C (248°F) |
| Cooling Method: | Ambient air |
| Weight: | 1.00 kg (2.20 lbs) |
| Dimensions (in.): | 289 x 96 x 57mm |
| Dimensions (mm) | 11.40" x 3.80" x 2.20" |
| Power: | 1ph 120V 60 Hz @ 150W |
