Habasit PT-103S Thermofix Hot Press 100mm With Set Up Plate
Part Number: PT-103S
Habasit's PT-103S is a heating tool for Thermofix belt joining.
![Checkmark Icon](https://updateltdcom-1.azureedge.net/img/product/description/CheckMark-Icon.png?fv=57A72CD2862873EECDD118C621665682)
Join belts up to 100mm wide x 3mm thick
![Checkmark Icon](https://updateltdcom-1.azureedge.net/img/product/description/CheckMark-Icon.png?fv=57A72CD2862873EECDD118C621665682)
Compatible with skive lengths up to 50mm
![Checkmark Icon](https://updateltdcom-1.azureedge.net/img/product/description/CheckMark-Icon.png?fv=57A72CD2862873EECDD118C621665682)

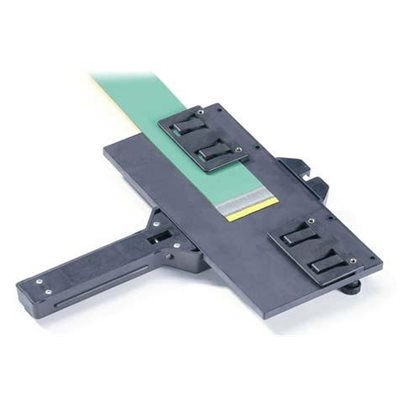

Includes special setup plate for belt positioning
$802.60 /EACH
List price: $802.60 /EACH
List price: $802.60 /EACH
- Availability: In stock

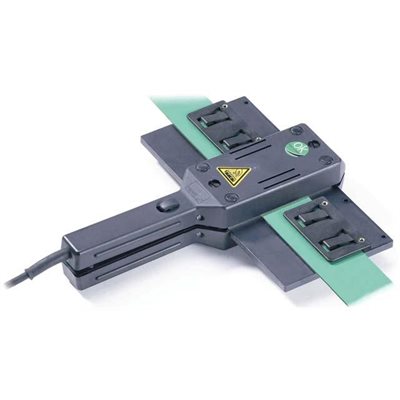

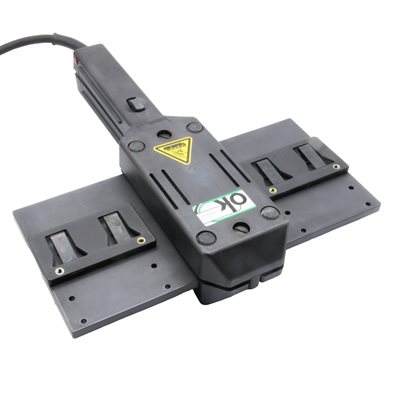

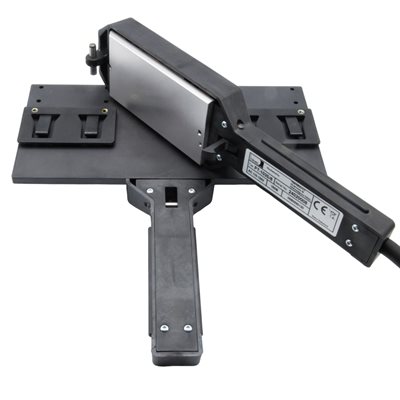

The PT-103 is a hot pressing device for joining Habasit belts using the Thermofix system (skived and bonded). The device is extremely compact. Top and bottom plates can be separated with a handle‚ allowing belts to be joined in locations with limited space. A special setup plate ensures the correct positioning of the belt ends.
Must be used with belting that requires additional adhesive (Fixol/Vulcol). Does not get hot enough for belting that has internal glue.
Habasit # H080690130
Specifications
Technical Data | |
---|---|
Belt Joint Type: | Thermofix |
Belt/Tape Max Width: | 100mm (4 in) |
Belt/Tape Max Thickness: | 3mm (0.10 in) |
Max Skiving Length: | 50mm (2 in) |
Working Temp: | 120°C (248°F) |
Cooling Method: | Ambient air |
Weight: | 1.10 kg (2.40 lbs) |
Dimensions (in.): | 300 x 250 x 57mm |
Dimensions (mm) | 11.81" x 10.00" x 2.20" |
Power: | 1ph 120V 60 Hz @ 150W |
