Hohner Stitching Head, 43/6S for Duplo DBM 500, Loop 6mm
Part Number: 0541861
The Hohner 43/6s was designed for an excellent minimum center-to-center stitch distance of 43mm. It is operator friendly, allowing for wire length and thickness adjustments in seconds. The head design now has more wear resistant parts than older models and will last longer between maintenance periods.
Stitcher head includes clincher assembly and wire guide.
-
Contact us for pricing
- Hohner Stitching Head, 43/6S Std. 24-28 Wire
- Hohner Stitching Head, 43/6s Loop 6mm
- Hohner Stitching Head 43/6S Loop 8mm
- Hohner Stitching Head, 43/6S for Duplo DBM 250-400
- Hohner Stitching Head, 43/6S for Duplo DBM 500 24-26 ga.
- Hohner Stitching Head, 43/6S for Duplo DBM 500 26-28 ga.
- Hohner Stitching Head, 43/6S for Duplo DBM 600
- Hohner Stitching Head, 43/6S for Heidelberg ST90 / ST100
- Hohner Stitching Head, 43/6S w/ Stop Stitch, Loop 6mm
- Hohner Stitching Head, 43/6s w/ Stop Stitch, Loop 8mm
- Hohner Stitching Head, 43/6S for Horizon Stitchliner SPF30
- Hohner Stitching Head, 43/6S for Horizon SPF20 / SPF200
- Hohner Stitching Head, 43/6S for C. P. Bourg BDH 26-28 ga.
- Hohner Stitching Head, 43/6S Theisen & Bonitz
- Availability: Available to Order
Specifications
| Technical Data | |
| Max Capacity: | .24" (6mm) |
| Crown Width: | 0.47" (12mm) |
| Wire Sizes: | 26-28 gauge loop |
| Minimum Center-to-Center: | 1.69" (43mm) |
| Weight: | 3 lbs. |
| Stitches per Hour: | Up to 14,000 |
| Machine Model: | Duplo DBM 500 |
Documents
 |  |

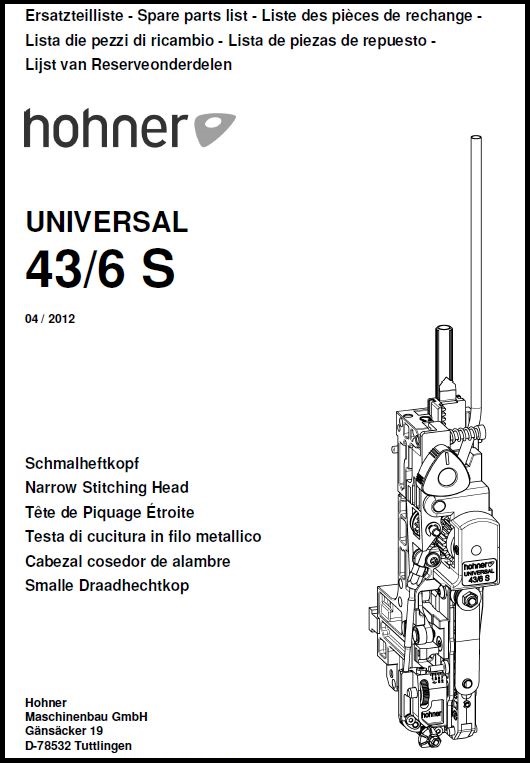

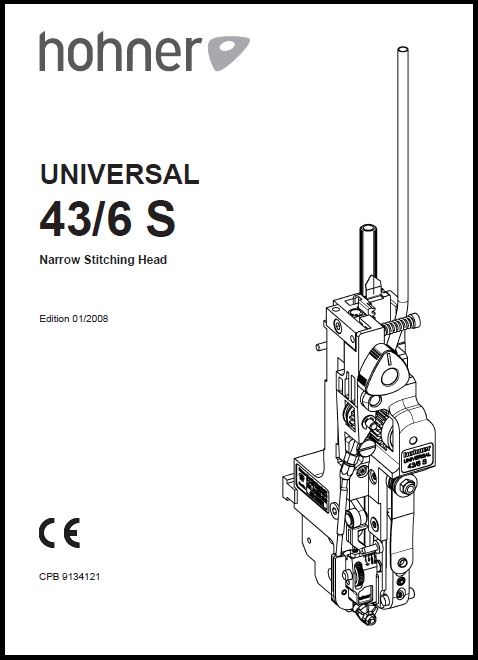

| Parts Manual | Operation Manual |
