Hohner Stitching Head, 43/6s Loop 6mm
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge
Hohner

Hohner Stitching Head, 43/6s Loop 6mm

Part Number: 0541251

The Hohner 43/6s was designed for an excellent minimum center-to-center stitch distance of 43mm. It is operator friendly, allowing for wire length and thickness adjustments in seconds. The head design now has more wear resistant parts than older models and will last longer between maintenance periods.

Stitcher head includes clincher assembly, wire guide, and tool kit.

$3,300.00 /EACH
List price: $3,300.00 /EACH
    • EACH
  • Availability: Available to Order

Specifications

 Technical Data
Max Capacity: .24" (6mm)
Crown Width: 0.47" (12mm)
Wire Sizes: 24-26 gauge loop stitch
Minimum Center-to-Center: 1.69" (43mm)
Weight:  3 lbs.
Stitches per Hour: Up to 14,000



Documents


Parts Manual Operation Manual



Machines
AM Graphics Harris 512 & 560 McCain 2500LS
Bielomatik P233 Harris 562 McCain 3000LS
Bielomatik P390 Harris 650 & 655 Omnibinder
Deluxe/Bostitch 17AW Harris Multibinder Omegabinder
Brehemer ST200, 270,300 Kugler 376-4 Parker
Brehemer T1000/S1000 Laconda Rosback 201, 202, 203
Fennimore Macey 560 & 562 Setmaster
Gidico Macey Omnibinder Stahl ST100
Harris 120 McCain Speedbinder Will
Harris 250 McCain 1800XL Xerox Docutec
Harris 455 (Prosetter) McCain 2000XL

You May Also Be Interested In

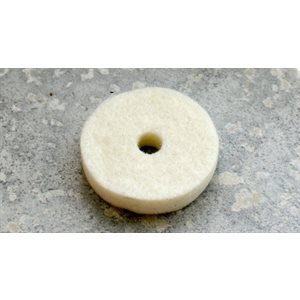

Felt Disc, Wire Guide
