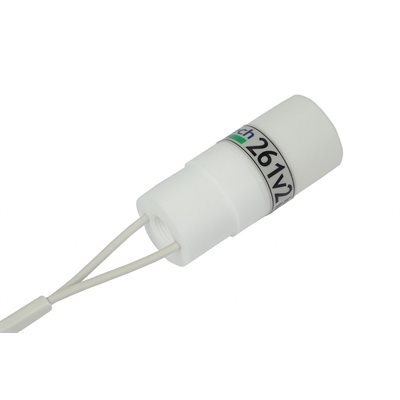

Meech 261v2 DC Ionizing Nozzle w/ 1/4" BSP Inlet & 1/4" BSP Outlet
Part Number: 261V2-32-BSP
The Meech Model 261v2-1/4 Ion Nozzle is a compact and durable ionizer designed for inline use. With its ¼” BSP connections, it seamlessly integrates into pre-existing air pipelines.
In industrial automated cleaning systems, the 261v2-1/4 effectively ionizes the airflow to sanitize and neutralize containers and parts.
To operate, it requires power from a Meech Model 233V4 Power Supply (Sold Separately)
List price: $217.00 /EACH
- Availability: Available to Order
Complete System:
- 261v2 Ionizing Nozzle (up to 2 per power supply)
- 233V4 Power Supply (x1)
- 900IPS Power Cable (x1)
Optional:
- Splitter (run more than 2 ionizing nozzles off 1 power supply, up to 14+ with additional splitters)
Specifications
| Technical Information | |
| Air Fitting: | 1/4" BSP Inlet & Outlet |
| Mas Air Pressure: | 100 psi (7 bar) |
| Typical Pressure: | 20 to 40 psi (1.5 to 3 bar) |
| Emitter Pins: | Machined Titanium (replaceable) |
| Decay Time: | 0.8 sec at 150mm at 30 psi |
| Ozone: | less than 0.1 ppm |
| Input Voltage: | +/- 9kV DC Nominal |
| Ion Balance: | +/- 10V or better at set up |
Documents
 |  |
| Data Sheet | Operating Manual |
Accessories
Power Supply: 233V4
Mounting Bracket: 260FIX
Splitter: 4WAY
Static Locator: 983V2
Other Nozzle Options
261V2-32-FLEX-1/4: 1/4" BSP Inlet & Flexible Outlet
261V2-32-FLEX: 6mm Push-fit Inlet & Flexible Outlet
261V2-32-1/4OUT: 6mm Push-fit Inlet & 1/4" BSP Outlet
