Habasit Quickmelt Hot Pressing Kit w/Case 50mm
Double-tap and hold to zoom.
Mouse over the image to zoom.

Habasit Quickmelt Hot Pressing Kit w/Case 50mm

Part Number: PQ-59K

Habasit's PQ-59K is a flat belt fabricating kit using the Quickmelt joining method.

Join belts up to 50mm wide x 4mm thick

Exchange belts in minutes either on or off the machine

Kit includes heat press, belt cutter, cooling tongs, timer, and case



Guide Rail sold separately.
$2,126.80 /EACH
List price: $2,126.80 /EACH
    • EACH
  • Availability: In stock

The PQ-59K is a hot pressing kit designed for joining Habasit machine and spindle tapes up to 50 mm in width and 3.6 mm in thickness using the Quickmelt method. With the purchase of a AF102, you can also use this kit for Flexproof joining. Equipped with a guide rail tailored to your required width, it offers a system that allows belt replacement in minutes. The PQ-59 now features a status indication via an LED light and an overheating protection for enhanced tool reliability. With the new control unit, the temperature can be set within a range of 120°C to 190°C.

Specifications

PQ-59 Heater
Belt Joint Type: Quickmelt / Flexproof
Belt Max Width: 50mm (2 in)
Belt Max Thickness: 4mm (0.14 in)
Temp. Range: 248°F - 374°F
Cooling Method: Cooling tongs
Dimensions (mm): 280 x 70 x 95mm
Dimensions (in.): 11.00" x 2.80" x 3.80"
Power: 1ph 120V 60Hz 450W

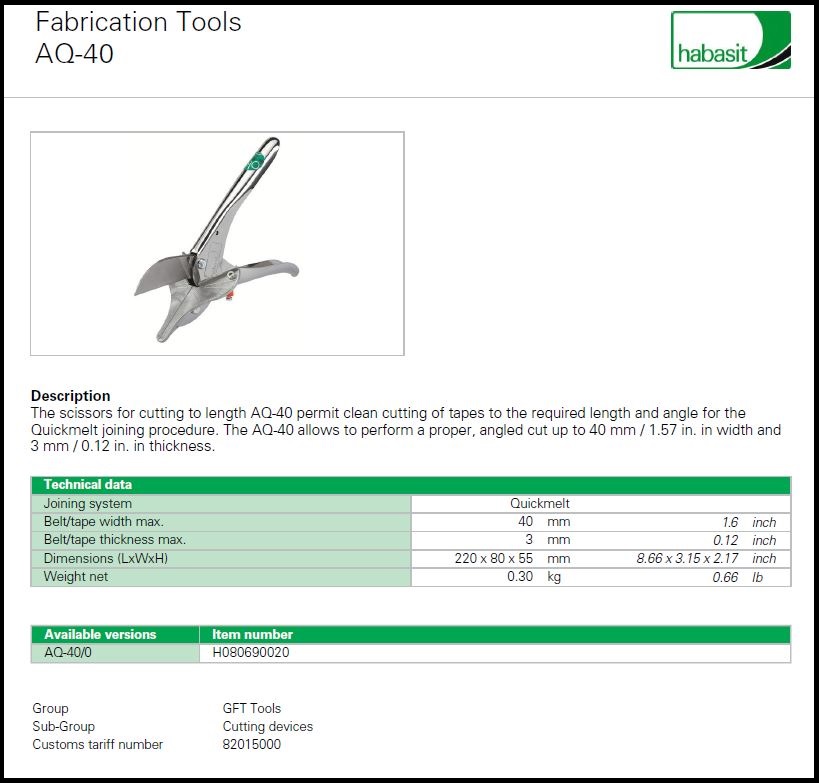

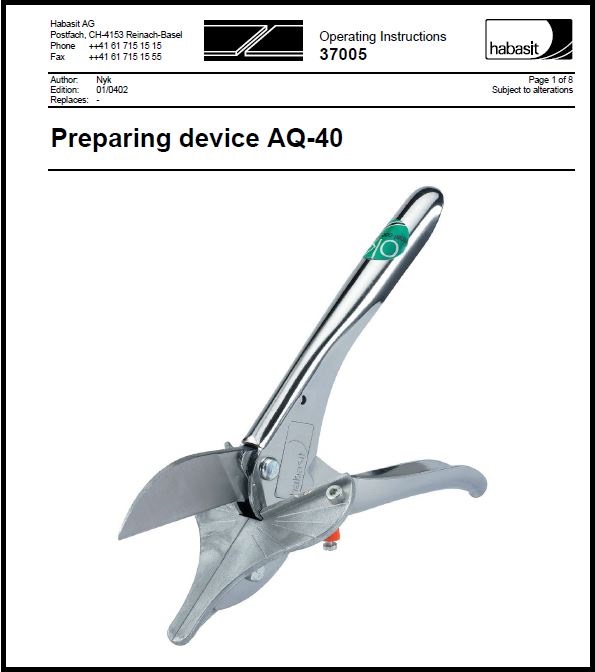

AQ-40 Cutter
Belt Joint Type: Quickmelt
Belt Max Width: 40mm (1.6 in)
Belt Max Thickness: 3mm (0.12 in)
Dimensions (mm): 220 x 80 x 55mm
Dimensions (in.): 8.66" x 3.15" x 2.17"
Weight: 0.30kg (0.66 lbs)
CD-60 Cooling Tongs
Belt Joint Type: Quickmelt / Flexproof
Belt Max Width: 60mm (2 in)
Belt Max Thickness: 5mm (0.18 in)
Dimensions (mm): 270 x 60 x 100mm
Dimensions (in.): 10.63" x 2.36" x 3.94"
Weight: 0.50kg (1.10 lbs)
