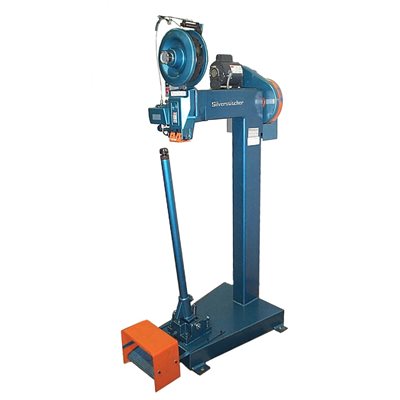

S5F16P, Heavy Duty Post Stitcher, 7/16 Crown
Double-tap and hold to zoom.
Mouse over the image to zoom.

S5F16P, Heavy Duty Post Stitcher, 7/16 Crown

Part Number: S5F16P-AST

Utilize a Heavy Duty Post-type stitcher for assembling various types of slotted boxes, such as regular, overlap, full overlap, and half-slotted boxes with partial covers. These stitchers efficiently and securely seal the bottoms of these boxes. Choose a model that suits your production needs, offering options for both narrow and wide crown stitching.

This stitcher is ideal for heavy-duty tasks, capable of handling three layers of single wall corrugated, two layers of double or triple wall corrugated, or assembling solid fiberboard boxes.

For enhanced operator comfort and efficiency, consider adding an optional electric trip pedal, which reduces fatigue.

$12,030.00 /EACH
List price: $12,030.00 /EACH
    • EACH
  • Availability: Available to Order

Specifications

Technical Data
Distance from Front of Frame
to Clincher:
16" (41cm)
Height from Base Top
to Clincher:
41.5" (105cm)
Max Box Width: 32" (81cm)
Max Box Depth: 41.25" (105cm)
Crown Size: 7/16" (11mm)
Wire Sizes: .103 x .014 / .103 x .017 / .103 x .020
Wire Coil Capacity: 25 lbs (11kg)
Stitches per Minute: 250
Motor: 1/3 HP, 1725 RPM, 115V / 60 Hz / AC,
Single Phase
Dimensions (W x D x H): 40" x 48" x 78" (102 x 122 x 198cm)
Shipping Weight: 458 lbs (208kg)

Documents


 S5F Stitcher Manual
