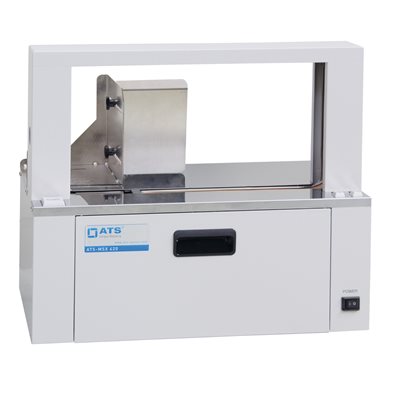

ATS MSX 420 Banding Machine
Part Number: MSX-420
Extremely reliable heat-seal table-top banding machine for compactness and mobility
 | 30 bands/minute |
| | 30mm band width |
| | Max product size: 16.50" width x 8.25" height |
Feel free to give us a call or reach out to our contact form with this part number for pricing and questions.
-
Contact us for pricing
- Band Width : 30mm
- Max Product Size (mm) W x H : 420 x 210mm
- Max Product Size (in) W x H : 16.50 x 8.25 in.
- Seal Type : Heat-Seal
- Availability: Available to Order
The ATS-MSX 420 is a compact and lightweight machine capable of processing both paper and film bands, including thin film bands starting from 60 µ thickness. It is designed to be user-friendly with pre-programmed functions like "pause" for interruptions, "soft" for delicate products, and "squeeze" for increased band tension. This affordable, mobile machine ensures products are banded efficiently and gently.
Features
• Bands with both paper & plastic materials
• Easy to set-up, use and maintain
• Utilizes an impulse heat seal
• Fixed arch
• Long roll dispenser option
• Highly versatile for limitless applications
• Does not require compressed air
• Multiple material selection options
Specifications
| Technical Data | |
| Model: | MS-420S |
| Max Product Width: | 420mm (16.54 in) |
| Min Product Width: | 20mm (0.787 in.) |
| Max Product Height: | 210mm (8.27 in.) |
| Min Product Height: | 2mm (0.08 in.) |
| Speed: | Up to 30 bandings/min. |
| Machine Height: | 490mm (19.29 in.) |
| Machine Width: | 569mm (22.40 in.) |
| Machine Depth: | 300mm (11.81 in.) |
| Weight: | 29kg (64 lbs) |
Documents
 |  |
| Data Sheet | ATS Heat Seal Line |
