Habasit AT-200M Belt Skiver With 120V Motor 200mm
Part Number: AT-200M
Habasit's AT-200M is a belt skiving tool for Thermofix belt joining.
![Checkmark Icon](https://updateltdcom-1.azureedge.net/img/product/description/CheckMark-Icon.png?fv=57A72CD2862873EECDD118C621665682)
Skive belts up to 200mm wide x 7mm thick
![Checkmark Icon](https://updateltdcom-1.azureedge.net/img/product/description/CheckMark-Icon.png?fv=57A72CD2862873EECDD118C621665682)
Adjustable table has 6 tilt options for varying belt thickness and skive length
![Checkmark Icon](https://updateltdcom-1.azureedge.net/img/product/description/CheckMark-Icon.png?fv=57A72CD2862873EECDD118C621665682)
Equipped with motor driven sanding cylinder and handwheel feed
$4,200.00 /EACH
List price: $4,200.00 /EACH
List price: $4,200.00 /EACH
- Availability: In stock
The AT-200M is a skiving device for Habasit belts and tapes up to 200 mm wide and 7 mm thick. The belt is clamped onto a steel table, which can be tilted in six steps and fed under a grinding drum on precise guides. The unit is driven by a high-torque motor for handling thick belting and the table feed is controlled by a hand wheel. The AT-200 is ideal for preparing belts and tapes in small to medium series.

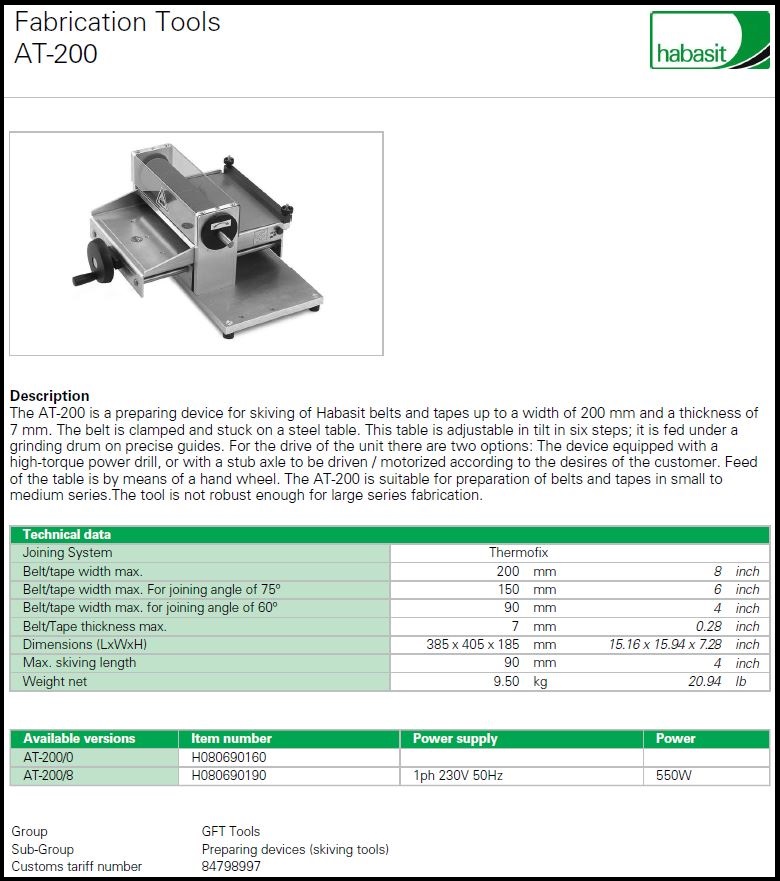

Specifications
Technical Data | |
---|---|
Belt Joint Type: | Thermofix |
Belt/Tape Max Width: | 200mm (8.0 in) |
Belt/Tape Max Thickness: | 7mm (0.28 in) |
Weight: | 29.5 kg (64 lbs) |
Dimensions (mm): | 385 x 405 x 185mm |
Dimensions (in.): | 15.16" x 15.94" x 7.28" |
Power: | 115V, 1 Ph, 60Hz |

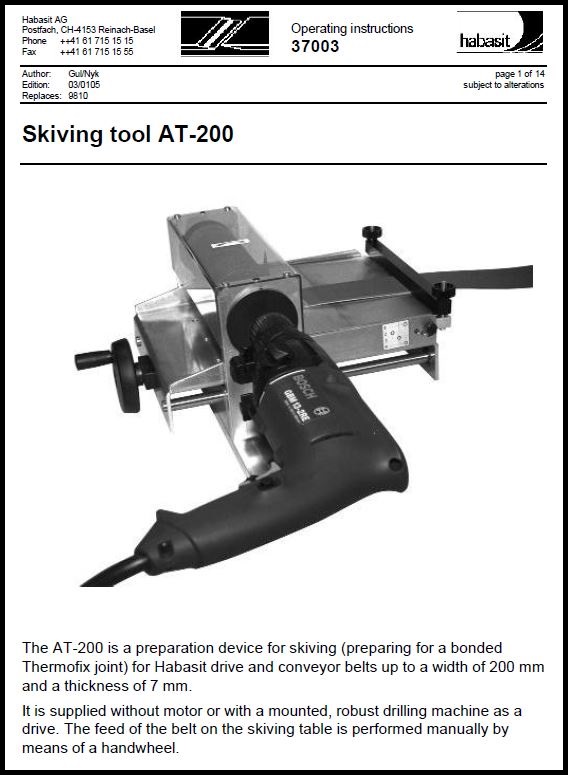

Documents
Videos
