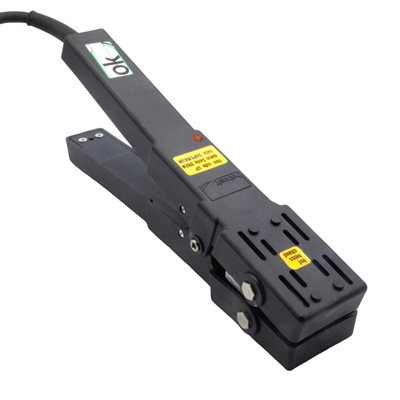

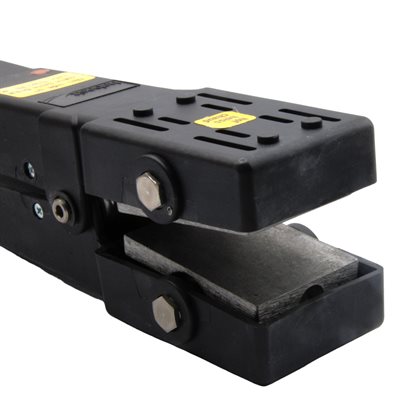

Habasit PT-55 Thermofix Hot Press 50mm Low Profile
Part Number: PT-55
Habasit's PT-55 is a belt heating tool for Thermofix belt joining.
Join belts up to 50mm wide x 3mm thick
Compatible with skive lengths up to 35mm
Working temperature is 120°C (248°F)
$554.78 /EACH
List price: $554.78 /EACH
List price: $554.78 /EACH
- Availability: In stock

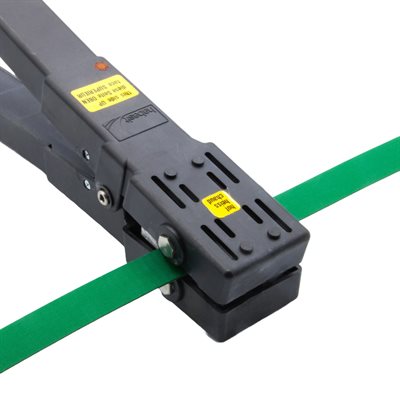

The PT-55 is a hot-pressing device designed for the joining of machine tape and spindle tape up to 50mm wide and 2.5mm thick using the Thermofix procedure. It's compact and lightweight design allows you to use it on-site.
Must be used with belting that requires additional adhesive (Fixol/Vulcol). Does not get hot enough for belting that has internal glue.
Habasit # H080691400
Specifications
| Technical Data | |
|---|---|
| Belt Joint Type: | Thermofix |
| Belt/Tape Max Width: | 50mm (2 in) |
| Belt/Tape Max Thickness: | 3mm (0.10 in) |
| Max Skiving Length: | 35mm (1.4 in) |
| Working Temp: | 120°C (248°F) |
| Cooling Method: | Ambient air |
| Weight: | 0.72 kg (1.60 lbs) |
| Dimensions (in.): | 280 x 63 x 95mm |
| Dimensions (mm) | 11.00" x 2.50" x 3.70" |
| Power: | 1ph 120V 60 Hz @ 150W |
