Habasit PT-100 Thermofix Hot Press 100mm
Part Number: PT-100
Habasit's PT-100 is a heating tool for Thermofix belt joining.
Join belts up to 100mm wide x 6mm thick
Compatible with skive lengths up to 85mm
Working temperature is 120°C (248°F)
List price: $1,066.75 /EACH
- Availability: In stock

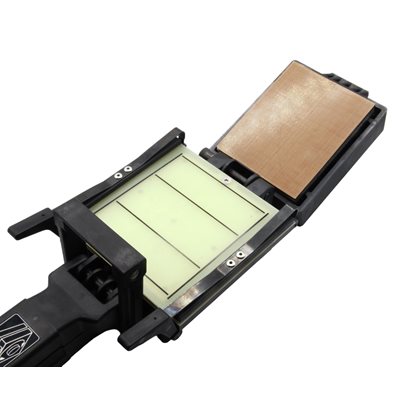

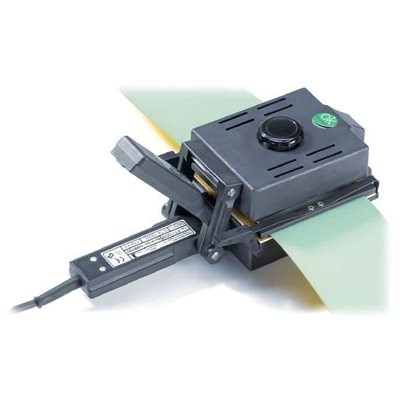

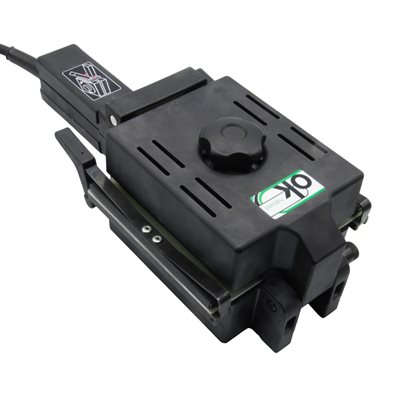

The PT-100 is a hot-pressing device for the Thermofix method of joining belts. The lower press plate is heated and is equipped with a detachable set-up plate with clamping springs for secure positioning of the belt ends. Its knuckle joint mechanism allows easy adjustment for different belt thickness. Together with the integrated pressure equalization pad, it ensures reliable hot pressing for even the most demanding glued belt joints.
Must be used with belting that requires additional adhesive (Fixol/Vulcol). Does not get hot enough for belting that has internal glue.
Habasit Model PT-100/6, #H080690070
Specifications
| Technical Data | |
|---|---|
| Belt Joint Type: | Thermofix |
| Belt/Tape Max Width: | 100mm (4 in) |
| Belt/Tape Max Thickness: | 6mm (0.24 in) |
| Max Skiving Length: | 85mm (3 in) |
| Working Temp: | 120°C (248°F) |
| Cooling Method: | Ambient air |
| Weight: | 2.00 kg (4.40 lbs) |
| Dimensions (in.): | 285 x 128 x 102mm |
| Dimensions (mm) | 11.20" x 5.00" x 4.00" |
| Power: | 1ph 120V 60 Hz @ 150W |
